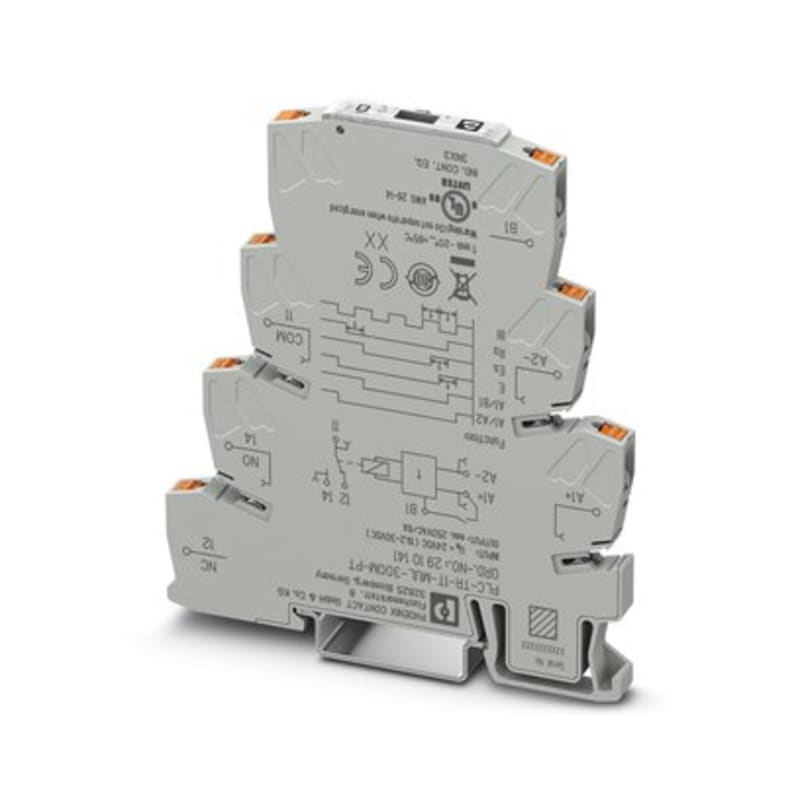

Phoenix Contact PLC-TR-1T-MUL-300M-PT Multifunction Timer Relay 6.2 mm

Phoenix Contact PLC-TR-1T-MUL-300M-PT is a slim 6.2 mm multifunction timer relay with four selectable functions and an adjustable time range from 0.1 s to 300 min. Rated control voltage is 230 V AC (50/60 Hz) or 24 V DC via AC/DC input, with a delayed change-over output and a delayed normally-closed contact. It mounts on 35 mm DIN rail and uses push-in (PT) spring-cage terminals for tool-free wiring. Typical applications include sequenced starting, delayed drop-out and pulse or flashing control in control-panel and machine-building schemes. Manufacturer order number: 2910141.

Manufacturer part number (MPN)

PLC-TR-1T-MUL-300M-PT

EAN / GTIN

4055626430607

HS code

8536.90

Sales unit

pcs

Product type

Timer Relay

Manufacturer order number

2910141

Suitable for front mounting

No

Function delay-on energization

No

Function delay on de-energization

Yes

Function floating contact on energization

No

Function floating contact on de-energization

Yes

Function star-delta

No

Function pulse shaping

No

Function flashing, starting with pause, fixed time

Yes

Function flashing, starting with pulse, fixed time

Yes

Clock function, starting with pause, variable

Yes

Clock function, starting with pulse, variable

Yes

With plug-in socket

No

Remote operation possible

No

Suitable as remote control

No

Pluggable on auxiliary contact block

No

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Rated control supply voltage DC

24 V

Voltage type for actuating

AC/DC

Number of outputs, delayed, normally closed contact

1

Number of outputs, delayed, change-over contact

1

Outputs, reversible delayed/undelayed

No

With semiconductor output

No

Suitable for DIN rail (top hat rail) mounting

Yes

Width

6.2 mm

Height

80 mm

Depth

86 mm

Country of origin

Germany

HS Code

8536.90
