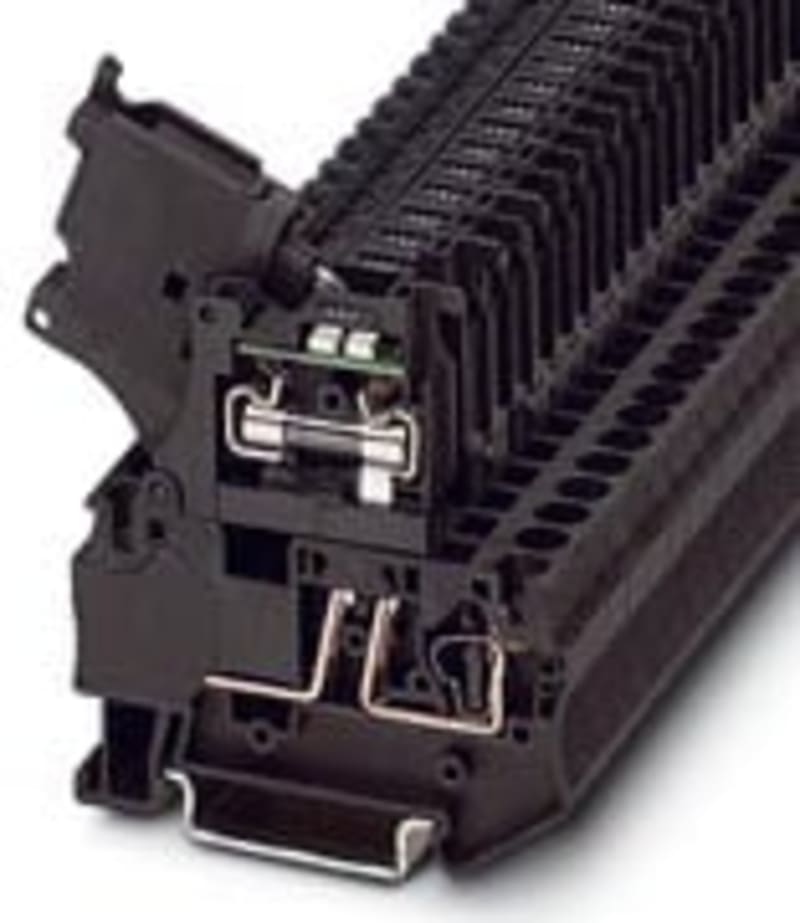

Fuse Modular Terminal Block (ST 4-Hesila 250 (5X20))
Pricing
Request a quote
We reply within 24 hours
Product Description
PHOENIX CONTACT ST 4-HESILA 250 Type: ST 4-HESILA 250 (5X20).
Technical Specifications
- Manufacturer part number (MPN)
- ST 4-HESILA 250 (5X20)
- EAN / GTIN
- 4017918890490
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Fuse Modular Terminal Block
- Manufacturer order number
- 3036563
- Supply voltage for defect-indication
- 110–250 V
- Connectable conductor cross section solid-core
- 0.08–6 mm²
- Connectable conductor cross section multi-wired
- 0.08–4 mm²
- Rated current In
- 6.3 A
- Rated voltage
- 250 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Clip connection
- Number of levels
- 1
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- 105 °C
- Width
- 6.15 mm
- Width/grid dimension
- 6.2 mm
- Height
- 61.5 mm
- Depth
- 63.38 mm
- Closing plate required
- No
- Length
- 61.5 mm
- Colour
- Black
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918890490
- SAP 1000329199
- Code 8903911
Product Documentation
More from Phoenix Contact
Phoenix Contact
Plastic Sign 45X15 White (emlp (45X15)r)
EMLP (45X15)R
Phoenix Contact
DIN Rail Connector (UMSTBVK 2,5/10-GF-5,08)
Phoenix Contact
Socket outlet EO-CF/UT/LED/F/GN
Phoenix Contact
Component Terminal Block (PT 2,5-TWIN-DIO/L-R)
Phoenix Contact
SIKR.TERMINAL PLUG-IN. 0,2-6 MM2 (ptv 4-Hesi (5X20))
PTV 4-HESI (5X20)
Phoenix Contact

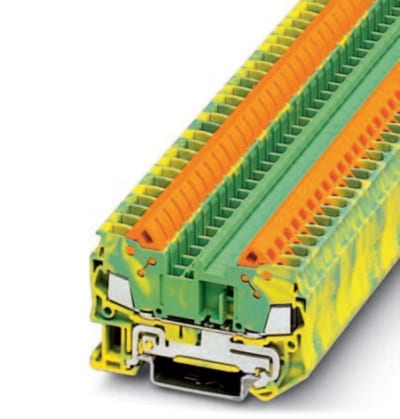

Ground Modular Terminal Block (QTC 2,5-Pe)
QTC 2,5-PE
Phoenix Contact

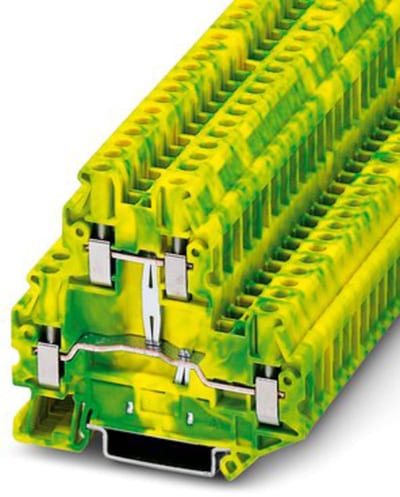

Ground Modular Terminal Block (UTTB 4-Pe)
