Phoenix Contact

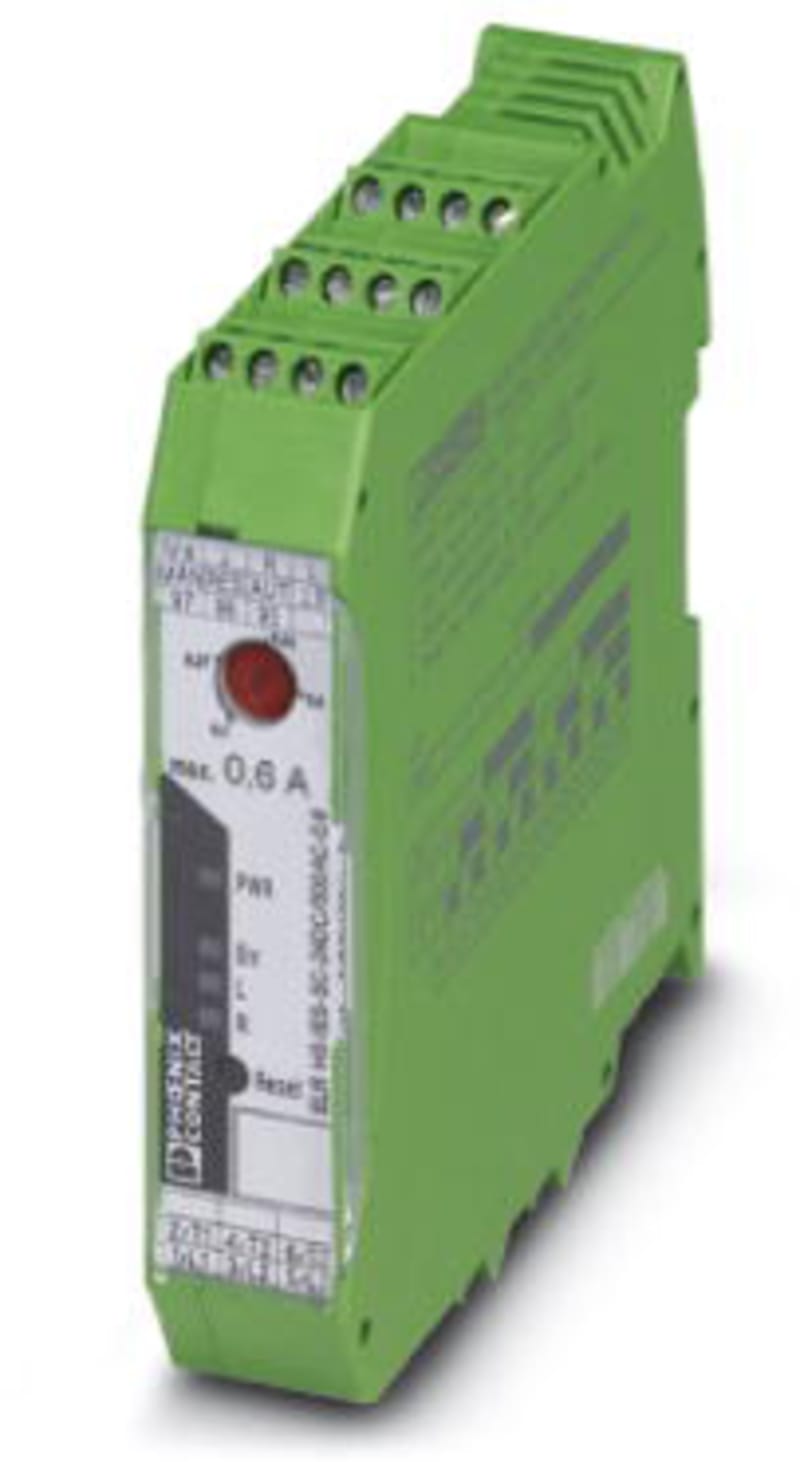

Hybrid Motor Starter (ELR H5-IES-SC- 24DC/500AC-0,6)
Part numberELR H5-IES-SC- 24DC/500AC-0,6EAN / GTIN4046356526289HS code8537.10
Drives & Controllers
Motor Starters
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
PHOENIX CONTACT UK ELR H5-IES-SC-24DC/500AC-0,6 Type: ELR H5-IES-SC- 24DC/500AC-0,6.
Technical Specifications
- Manufacturer part number (MPN)
- ELR H5-IES-SC- 24DC/500AC-0,6
- EAN / GTIN
- 4046356526289
- Sales unit
- pcs
- Product type
- Hybrid Motor Starter
- Manufacturer order number
- 2900582
- Width
- 22.5 mm
- Height
- 107 mm
- Depth
- 114 mm
- With transformer
- No
- Number of command positions
- 1
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- Yes
- Rated operation current Ie
- 0.6 A
- Overload release current setting
- 0.075–0.6 A
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 19.2–30 V
- Rated control supply voltage AC 60 Hz
- 19.2–30 V
- Rated control supply voltage DC
- 19.2 V
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10
- With short-circuit release
- No
- With fuse
- No
- Type of electrical connection of main circuit
- Screw connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- DC
- Type of motor starter
- Reversing starter
- Rated operation current at AC-3, 400 V
- 0.6 A
- Temperature compensated overload protection
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4046356526289
- SAP 1000257990
- Code 8233012
Product Documentation
Document preview: Hybrid Motor Starter (ELR H5-IES-SC- 24DC/500AC-0,6) — Specification sheet
