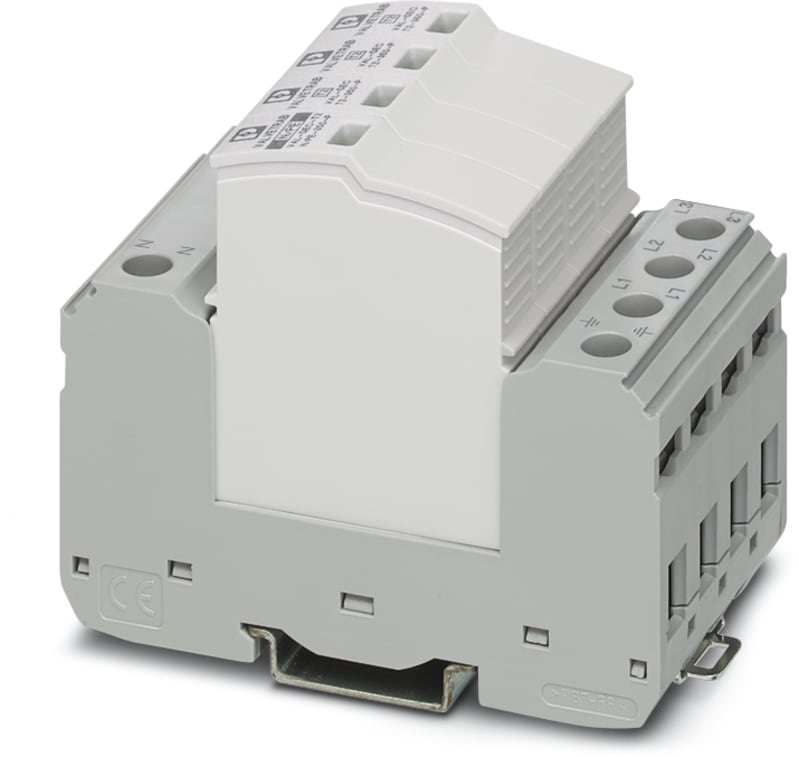

Type 2 Surge Arrester (VAL-SEC-T2-3S-350-FM)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact VAL-SEC-T2-3S-350-FM SURGE ARRESTER TYPE 2 TN SYSTEM.
Technical Specifications
- Manufacturer part number (MPN)
- VAL-SEC-T2-3S-350-FM
- EAN / GTIN
- 4046356948173
- Sales unit
- pcs
- Number of poles
- 4P
- Product type
- Type 2 Surge Arrester
- Manufacturer order number
- 2905340
- System configuration
- TN-S
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 40 kA
- Short-circuit-proof
- No
- Nominal voltage AC
- 240 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level
- 1.9 kV
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 40 A
- Short-circuit breaking capacity (Isccr)
- 50 kA
- Integrated backup fuse
- Yes
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 2.5 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4046356948173
- SAP 1000709786
- Code 8219495
