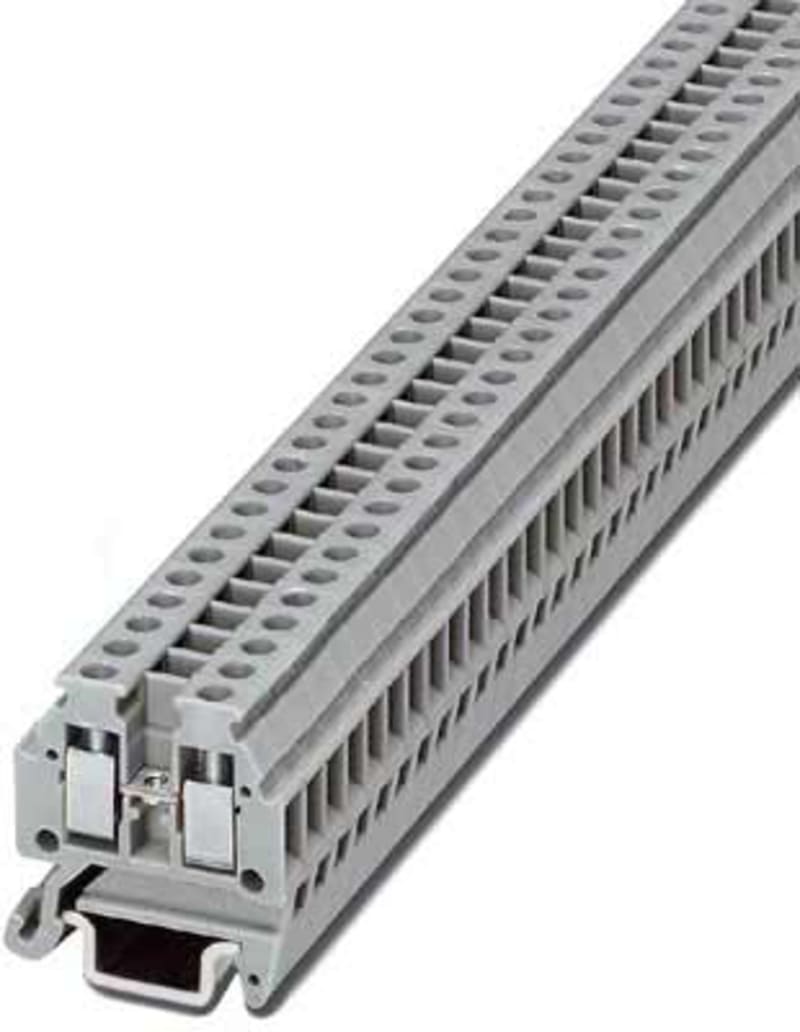

Phoenix Contact MT 1,5 Micro Screw Terminal Block, 0.14–1.5 mm², Grey

Phoenix Contact MT 1,5 is a single-level micro screw-connection terminal block for DIN top-hat rail (15 mm) with two clamp positions and a 4.2 mm grid pitch. It accepts aluminium or copper conductors from 0.14–1.5 mm² solid or 0.14–0.5 mm² multi-wired, rated 17.5 A at 400 V, over a −60 to 110 °C operating range and is Ex e certified with internally connected stages. Supplied in grey; a closing plate is required at the assembly end. Country of origin is Türkiye and the item ships in packs of 50.

Manufacturer part number (MPN)

MT 1,5

EAN / GTIN

4017918099251

Sales unit

pcs

Package quantity

50 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.14–1.5 mm²

Connectable conductor cross section multi-wired

0.14–0.5 mm²

Rated current In

17.5 A

Rated voltage

400 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 15 mm

Operating temperature

-60–110 °C

Width

4.2 mm

Width/grid dimension

4.2 mm

Height

22 mm

Depth

23.5 mm

Length

22 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Colour

Grey

Internally connected stages

Yes

Country of origin

Türkiye

HS Code

8536.90

• EAN 4017918099251
• SAP 1000015703
• Code 8131865
