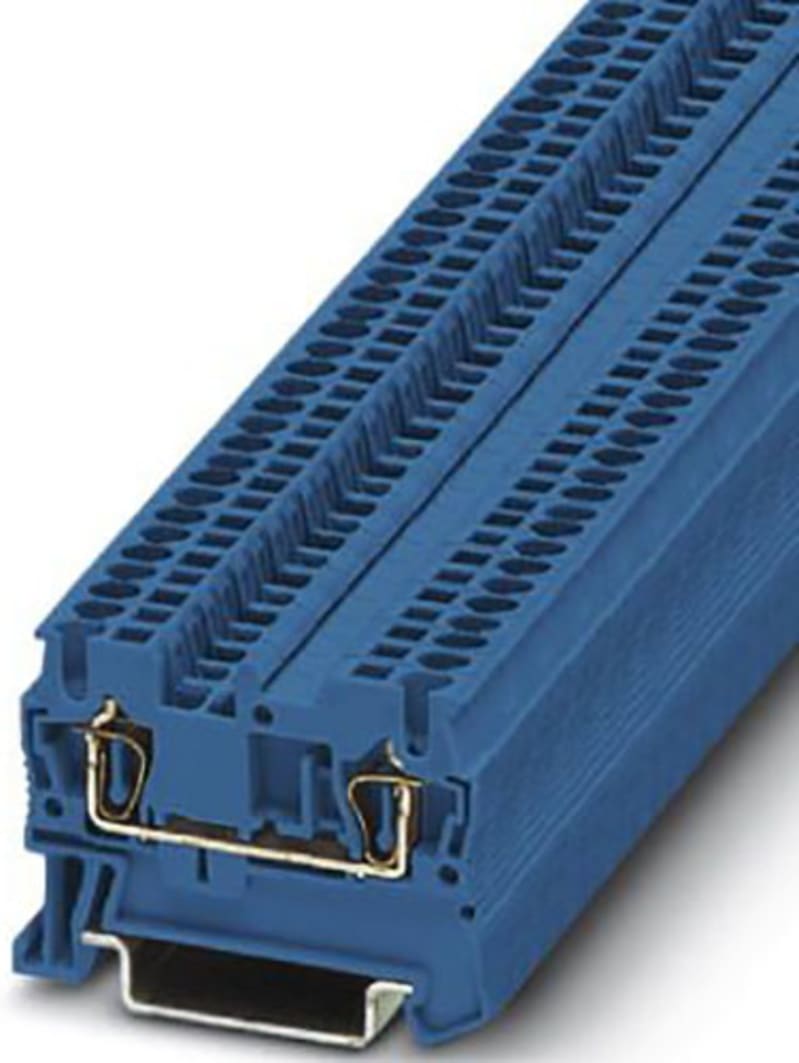

Phoenix Contact ST 1,5 BU Spring-Cage Terminal 1.5 mm² Blue

Phoenix Contact ST 1,5 BU is a single-level feed-through spring-cage terminal for 1.5 mm² conductors in blue, rated 17.5 A at 500 V and mounted on 35 mm DIN rail. It accepts solid and stranded conductors from 0.08 to 1.5 mm² in either aluminium or copper, and is certified for use in Ex e installations with the required closing plate.

Manufacturer part number (MPN)

ST 1,5 BU

EAN / GTIN

4017918186630

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

1.5 mm²

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.08–1.5 mm²

Connectable conductor cross section multi-wired

0.08–1.5 mm²

Rated current In

17.5 A

Rated voltage

500 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

4.2 mm

Width/grid dimension

4.2 mm

Height

48.5 mm

Depth

36.5 mm

Length

48.5 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Colour

Blue

Internally connected stages

Yes

Country of origin

Germany

HS Code

8536.90

• EAN 4017918186630
• SAP 1000056279
• Code 8893413
