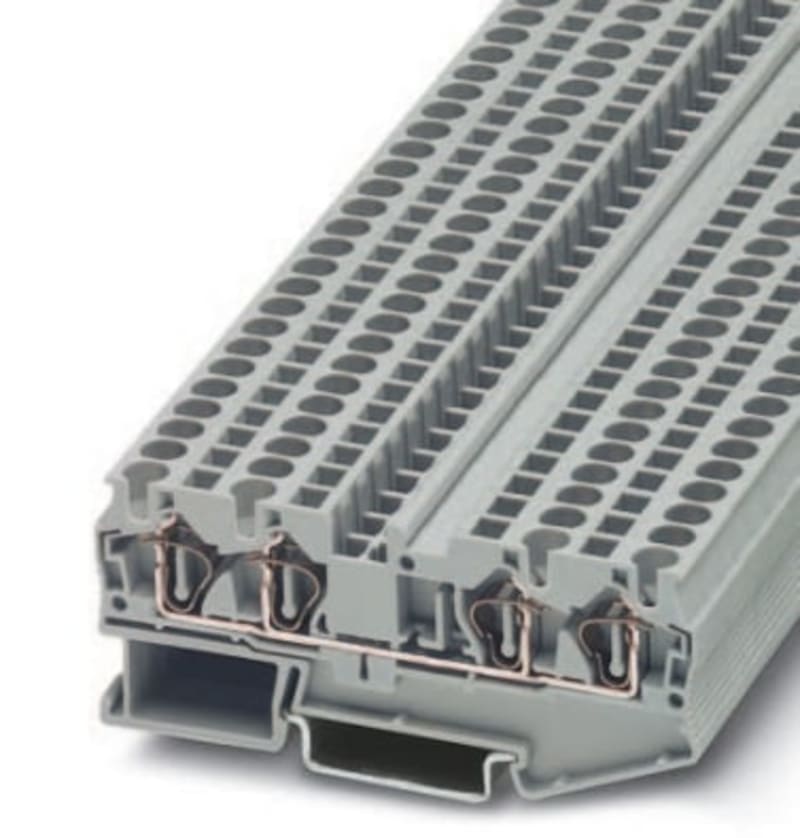

Phoenix Contact ST 4-QUATTRO Spring-Clamp Terminal Block, 4-Connection, 0.08–4 mm²

Phoenix Contact ST 4-QUATTRO is a single-level spring-clamp terminal block for DIN top-hat rail (35 mm) with four clamp positions and a 6.2 mm grid pitch. It accepts aluminium or copper conductors from 0.08–6 mm² solid or 0.08–4 mm² multi-wired, rated 32 A at 800 V, over a −60 to 110 °C operating range and Ex e certified. Supplied in grey with internally connected stages; a closing plate is required at the assembly end. Country of origin is Germany and the item ships in packs of 50.

Manufacturer part number (MPN)

ST 4-QUATTRO

EAN / GTIN

4017918186890

Sales unit

pcs

Package quantity

50 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.08–6 mm²

Connectable conductor cross section multi-wired

0.08–4 mm²

Rated current In

32 A

Rated voltage

800 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Number of levels

1

Number of clamp positions per level

4

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

6.2 mm

Width/grid dimension

6.2 mm

Height

87 mm

Depth

36.5 mm

Length

87 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Colour

Grey

Internally connected stages

Yes

Country of origin

Germany

HS Code

8536.90

• EAN 4017918186890
• SAP 1000043062
• Code 8775510
