Phoenix Contact

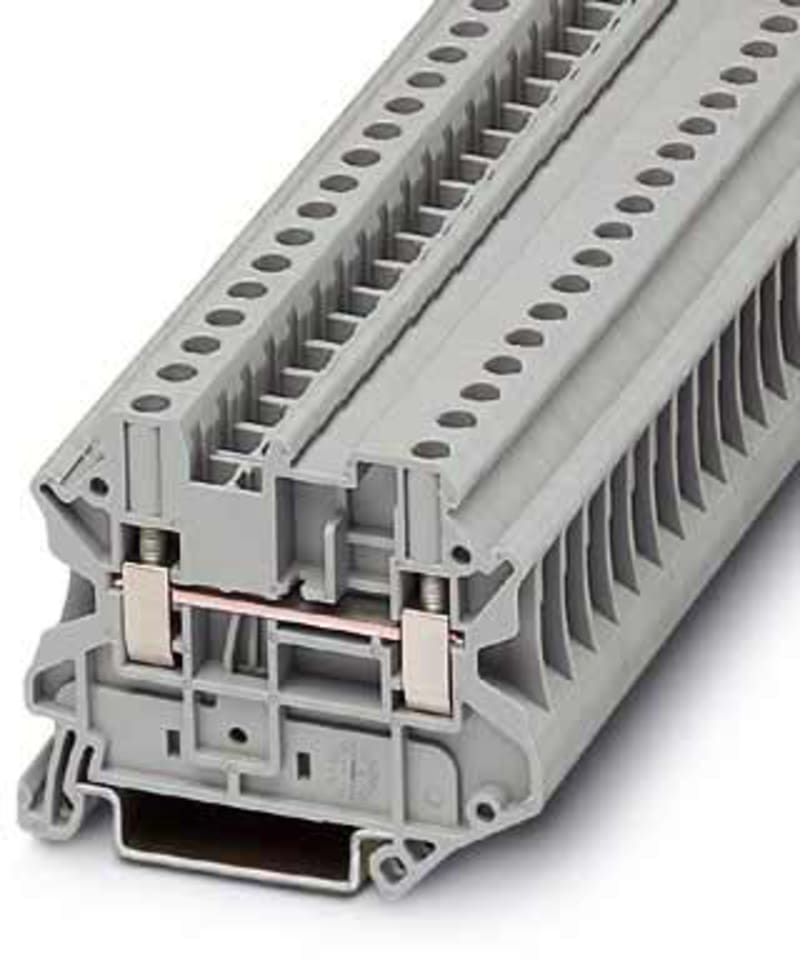

Feed-Through Terminal Block (UT 4-Mtd)
Part numberUT 4-MTDEAN / GTIN4017918956592HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UT 4-MTD Terminal block, screw 0,14-4.
Technical Specifications
- Manufacturer part number (MPN)
- UT 4-MTD
- EAN / GTIN
- 4017918956592
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Feed-Through Terminal Block
- Manufacturer order number
- 3046184
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.14–6 mm²
- Connectable conductor cross section multi-wired
- 0.14–1.5 mm²
- Rated current In
- 32 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–110 °C
- Width
- 6.2 mm
- Width/grid dimension
- 6.2 mm
- Height
- 57.8 mm
- Depth
- 47.5 mm
- Length
- 57.8 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918956592
- SAP 1000074908
- Code 8797881
Product Documentation
Document preview: Feed-Through Terminal Block (UT 4-Mtd) — Specification sheet
More from Phoenix Contact
Phoenix Contact
Contact Insert (HC-B10-I-PT-F)
Phoenix Contact
Hybrid Motor Starter (ELR H5-IES-SC- 24DC/500AC-2)
Phoenix Contact
Gruppeskilleplate TPN-UK
Phoenix Contact
Disconnect Terminal Block (UDK 4-Tg)
UDK 4-TG
Phoenix Contact
TERMINAL Plug-in 6/ 0,14-2,5 19 CONNECTION (3273246)
Phoenix Contact

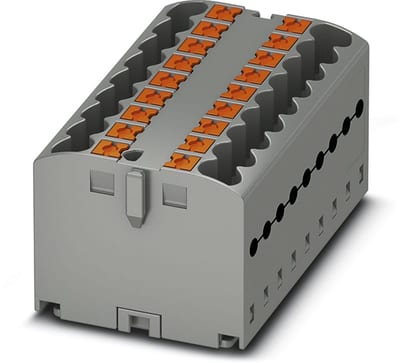

Distribution Block (PTFIX 18X2,5-Fe)
PTFIX 18X2,5-FE
Phoenix Contact

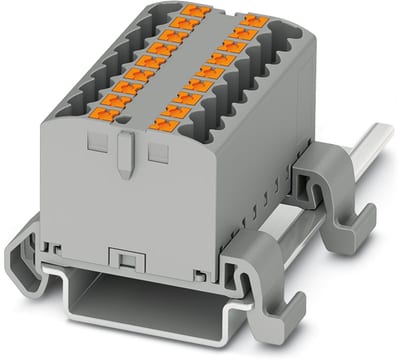

TERMINAL Plug-in 0,14-2,5 18 Connections (3273176)
