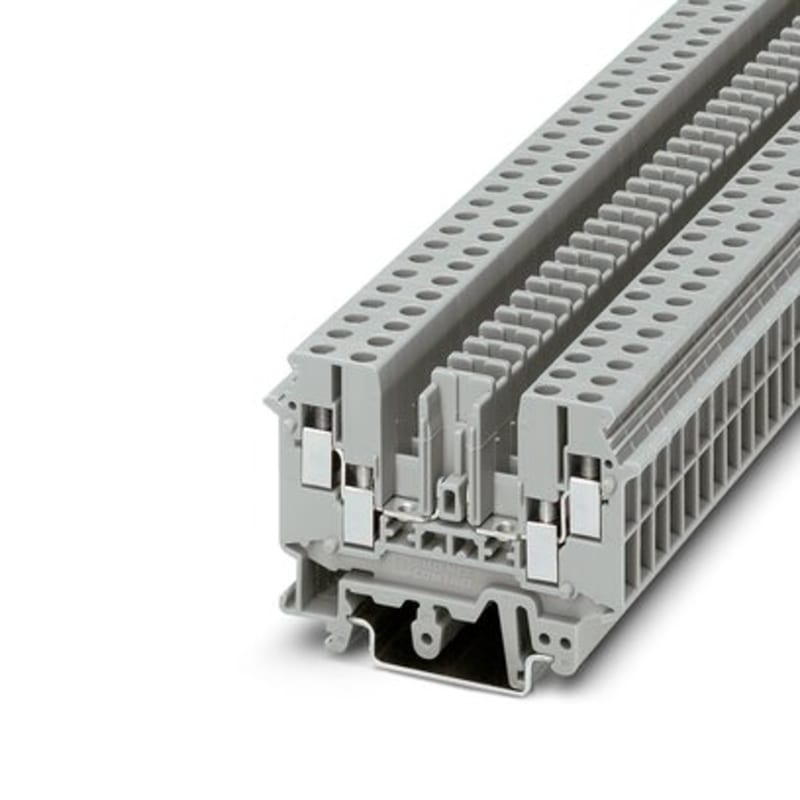

Disconnect Terminal Block (UDK 4-Tg)
Pricing
Request a quote
We reply within 24 hours
Overview
Phoenix Contact Disconnect Terminal Block (UDK 4-Tg) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Product type: Disconnect Terminal Block; Rated current In: 16 A; Rated voltage: 400 V; Type of electrical connection 1: Screw connection.
Technical Specifications
- Manufacturer part number (MPN)
- UDK 4-TG
- EAN / GTIN
- 4017918068608
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Disconnect Terminal Block
- Manufacturer order number
- 2777014
- Connectable conductor cross section solid-core
- 0.2–6 mm²
- Connectable conductor cross section multi-wired
- 0.2–1 mm²
- Rated current In
- 16 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 4
- Internally connected stages
- Yes
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 6.2 mm
- Width/grid dimension
- 6.2 mm
- Height
- 63.5 mm
- Depth
- 47 mm
- Closing plate required
- Yes
- Colour
- Grey
- Type of cross disconnection
- None
- With integrated test socket
- No
- Length
- 63.5 mm
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918068608
- SAP 1000231925
- Code 81021778
Product Documentation
