Phoenix Contact Heavycon B10 Add-on Housing Aluminium Longitudinal Clip Seawater-Resistant
Pricing
Request a quote
We reply within 24 hours
Product Description

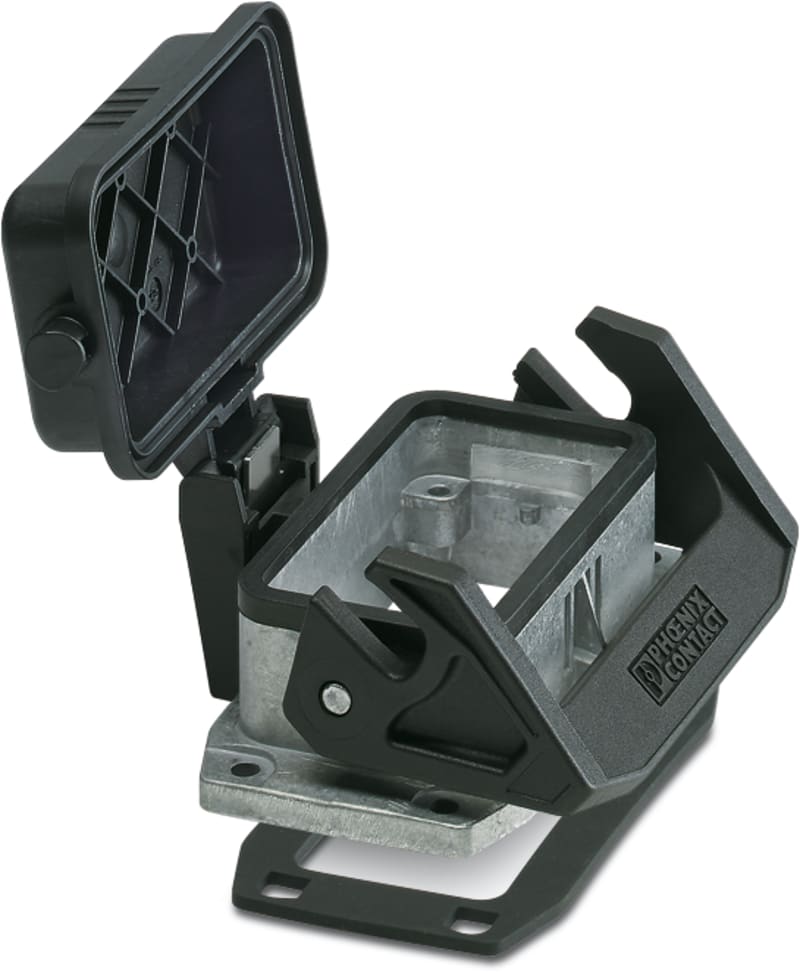

Phoenix Contact HC-STA-B10-BWSC-ELC-AL is an add-on housing from the Heavycon range in B10 size, with a hinged cover and a single longitudinal locking lever. The aluminium body is seawater-resistant and rated IP66 with impact class IK08. Supplied with an integrated sealing element for reliable mating with a matching mating connector.
Technical Specifications
- Manufacturer part number (MPN)
- HC-STA-B10-BWSC-ELC-AL
- EAN / GTIN
- 4046356927222
- Sales unit
- pcs
- Product type
- Housing
- Manufacturer order number
- 1411321
- Width
- 53 mm
- UV resistant
- No
- Height
- 30.5 mm
- Depth
- 93.5 mm
- With hinged lid
- Yes
- Type of locking
- Single locking lever
- With cable screw gland
- No
- EMC-version
- Yes
- Corrosion resistant
- Yes
- Length
- 93.5 mm
- Housing material
- Aluminium
- Coating housing
- Uncoated
- Impact strength
- IK08
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Housing extension
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP66
- Position of the shackle
- Top cover
- Mounting method of the cable gland
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4046356927222
- SAP 1200046416
- Code 81897850
