Phoenix Contact

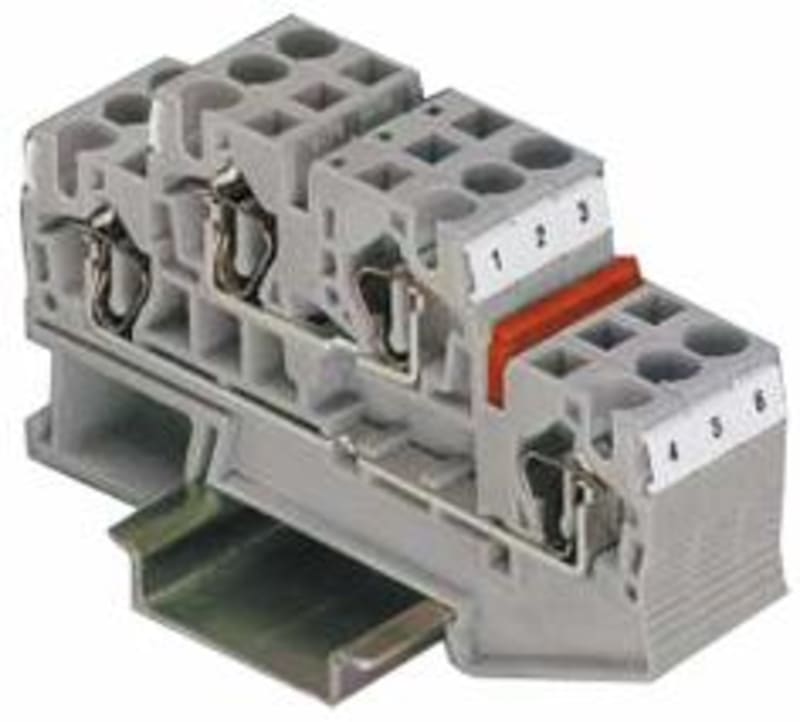

Double-Level Spring-Cage Terminal Block
Part numberSTTB 1,5EAN / GTIN4017918186708HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact STTB 1,5 Terminal block Spring 2-tier 0,08-1,5.
Technical Specifications
- Manufacturer part number (MPN)
- STTB 1,5
- EAN / GTIN
- 4017918186708
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Double-Level Spring-Cage Terminal Block
- Manufacturer order number
- 3031157
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.08–1.5 mm²
- Connectable conductor cross section multi-wired
- 0.08–1.5 mm²
- Rated current In
- 17.5 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 4.2 mm
- Width/grid dimension
- 4.2 mm
- Height
- 67.5 mm
- Depth
- 47.5 mm
- Length
- 67.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918186708
- SAP 1000032638
- Code 8742248
