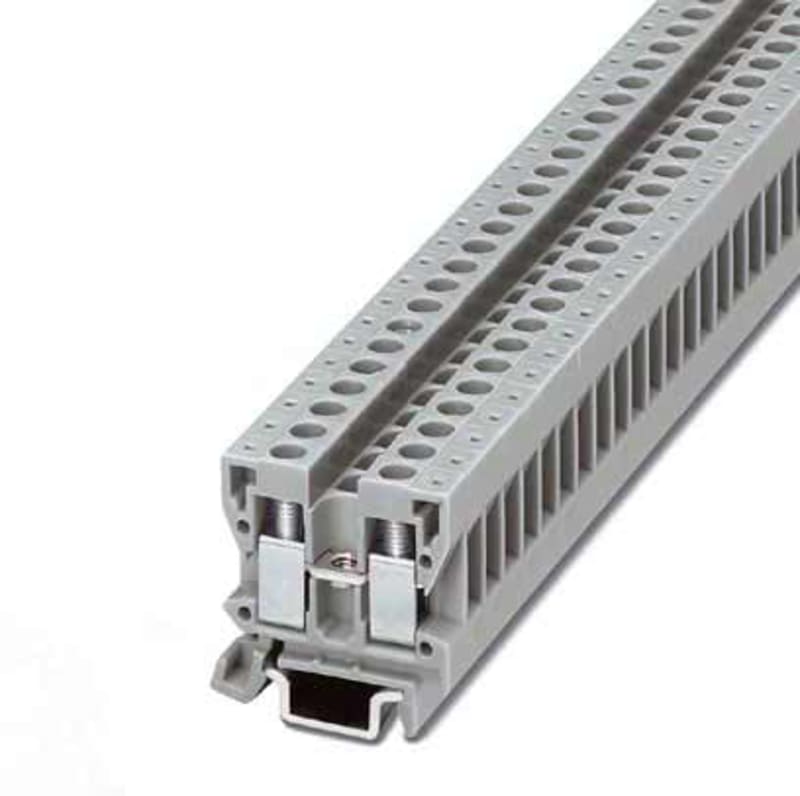

Phoenix Contact MBK 2,5/E Miniature Screw Terminal Block, 0.2–2.5 mm², Grey

Phoenix Contact MBK 2,5/E is a single-level miniature screw-connection terminal block for DIN top-hat rail (15 mm) with two clamp positions and a 5.2 mm grid pitch. It accepts conductors from 0.2–2.5 mm² solid or 0.2–0.75 mm² multi-wired, rated 24 A at 250 V, over a −60 to 105 °C operating range and is Ex e certified. Supplied in grey; a closing plate is required at the assembly end. Country of origin is India and the item ships in packs of 50.

Manufacturer part number (MPN)

MBK 2,5/E

EAN / GTIN

4017918021269

Sales unit

pcs

Package quantity

50 pcs

Connectable conductor cross section solid-core

0.2–2.5 mm²

Connectable conductor cross section multi-wired

0.2–0.75 mm²

Rated current In

24 A

Rated voltage

250 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 15 mm

Operating temperature

-60–105 °C

Width

5.15 mm

Width/grid dimension

5.2 mm

Height

24.5 mm

Depth

25.7 mm

Length

24.5 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Colour

Grey

Internally connected stages

No

Country of origin

India

HS Code

8536.90

• EAN 4017918021269
• SAP 1000017682
• Code 8149606
