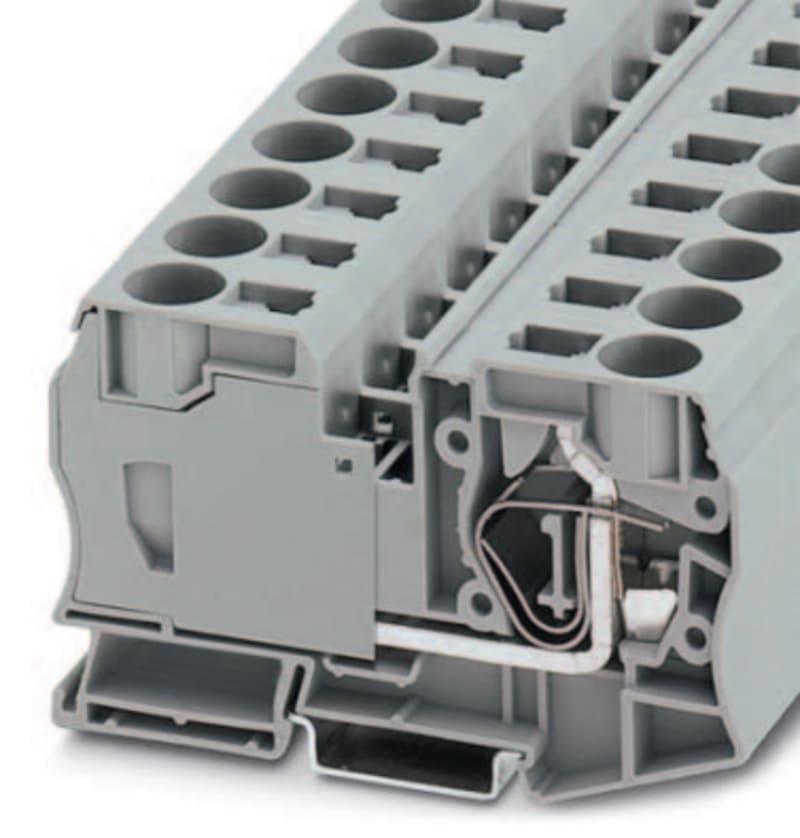

Phoenix Contact ST 35 Spring-Clamp Terminal Block, 2.5-35 mm², 125 A

Phoenix Contact ST 35 is a single-level feed-through terminal block with spring-cage connections on both sides for aluminium or copper conductors from 2.5 to 35 mm², rated 125 A at 1000 V. Explosion-tested for Ex e service, 16 mm wide with grey housing, mounts on 35 mm DIN top-hat rail with an operating range of -60 to 110 °C. Sold in packs of 10. Country of origin: Poland.

Manufacturer part number (MPN)

ST 35

EAN / GTIN

4017918821043

Sales unit

pcs

Package quantity

10 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

2.5–35 mm²

Connectable conductor cross section multi-wired

2.5–35 mm²

Rated current In

125 A

Rated voltage

1000 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

16 mm

Width/grid dimension

16 mm

Height

100 mm

Depth

59 mm

Length

100 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

No

Colour

Grey

Internally connected stages

Yes

Country of origin

Poland

HS Code

8536.90

• EAN 4017918821043
• SAP 1000061391
• Code 8919493
