Phoenix Contact

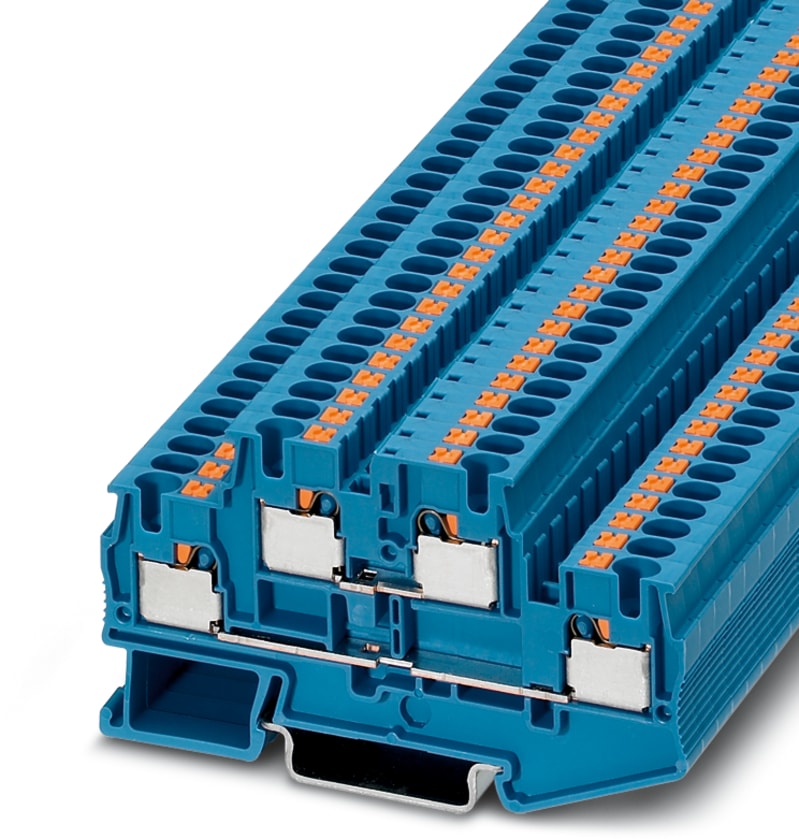

Double-Level Terminal Block (PTTB 4 BU)
Part numberPTTB 4 BUEAN / GTIN4046356482714HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PTTB 4 BU.
Technical Specifications
- Manufacturer part number (MPN)
- PTTB 4 BU
- EAN / GTIN
- 4046356482714
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Double-Level Terminal Block
- Manufacturer order number
- 3211793
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.2–6 mm²
- Connectable conductor cross section multi-wired
- 0.2–4 mm²
- Rated current In
- 28 A
- Rated voltage
- 500 V
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 6.2 mm
- Width/grid dimension
- 6.2 mm
- Height
- 83.5 mm
- Depth
- 47.5 mm
- Length
- 83.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356482714
- SAP 1000235815
- Code 8160574
Product Documentation
Document preview: Double-Level Terminal Block (PTTB 4 BU) — Specification sheet
More from Phoenix Contact
Phoenix Contact

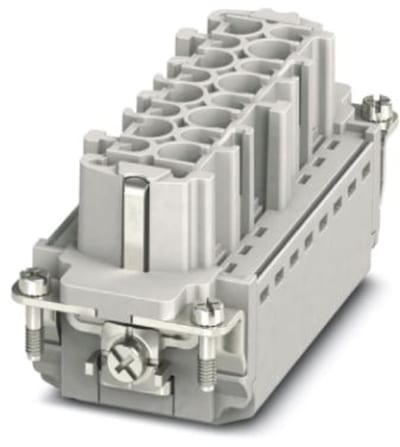

Contact Insert (HC-B16-I-PT-F)
Phoenix Contact

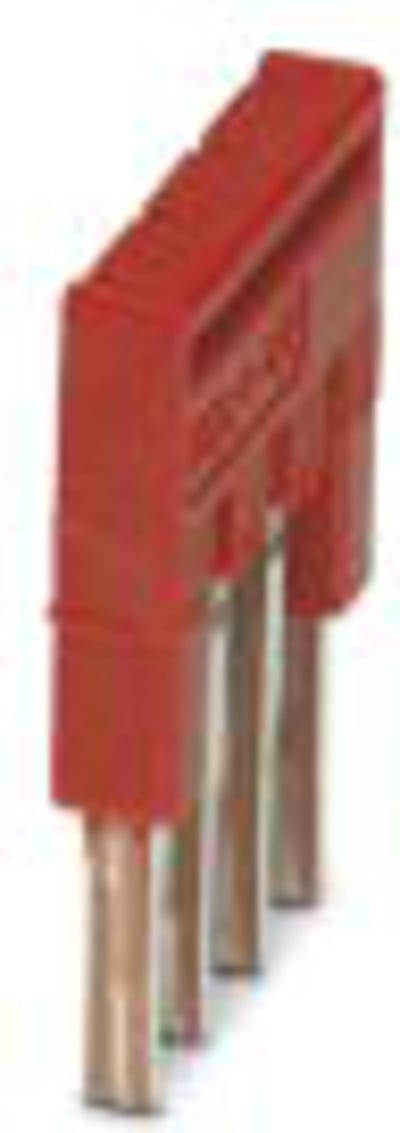

Plugbro FBS 4-3,5
Phoenix Contact

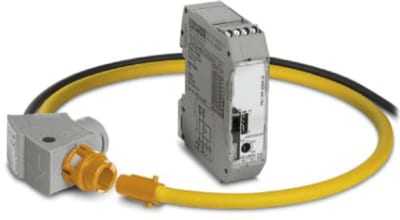

Current Transformer (PACT RCP-4000A-1A-D190)
Phoenix Contact

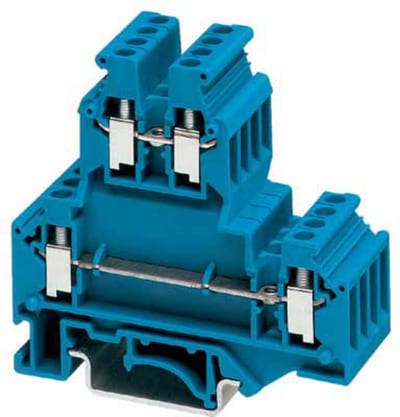

Double-Level Terminal Block (UKKB 3 BU)
UKKB 3 BU
Phoenix Contact

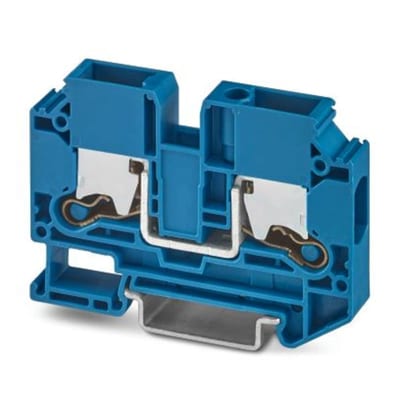

Feed-Through Terminal Block (XTV 10 BU)
Phoenix Contact
LABEL, ROLL, White/Black EX10 (mm-EML (EX10)r C1 WH/Bk)
MM-EML (EX10)R C1 WH/BK
Phoenix Contact
Connection Terminal Block (AKG 16 BU)
Phoenix Contact
Surge-protection device (LIT 1X2-24)
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PTTB 4 BU?
- PTTB 4 BU can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is PTTB 4 BU.
- What is the HS code for PTTB 4 BU?
- The customs tariff (HS) code for PTTB 4 BU is 8536.90.
- Who manufactures PTTB 4 BU?
- PTTB 4 BU is a Phoenix Contact product in the Electrical Components range.
- Is a datasheet available for PTTB 4 BU?
- Yes — the PTTB 4 BU datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PTTB 4 BU?
- The minimum order quantity is 1.
- Is PTTB 4 BU available?
- Yes — PTTB 4 BU is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
