Phoenix Contact

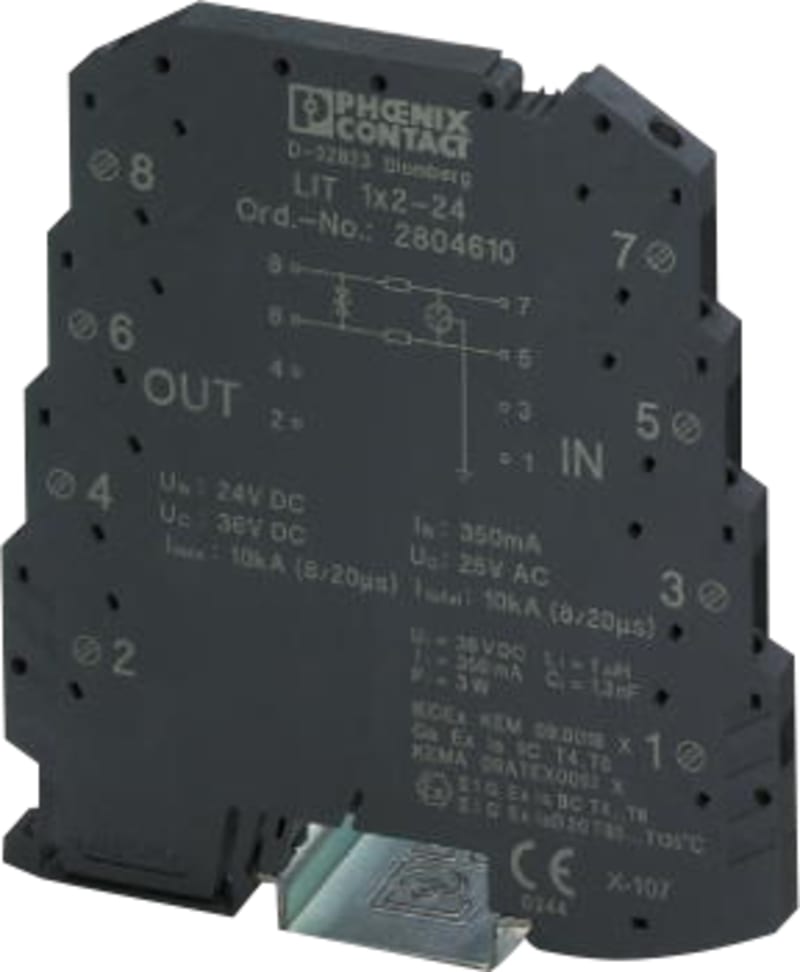

Surge-protection device (LIT 1X2-24)
Part numberLIT 1X2-24EAN / GTIN4046356428330HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact LIT 1X2-24.
Technical Specifications
- Manufacturer part number (MPN)
- LIT 1X2-24
- EAN / GTIN
- 4046356428330
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Product type
- Surge Protection Device
- Manufacturer order number
- 2804610
- Nominal voltage DC
- 24 V
- Max. continuous voltage AC
- 25 V
- Max. continuous voltage DC
- 36 V
- Nominal discharge surge current (8/20)
- 5 kA
- Nominal load current
- 0.35 A
- Voltage protection level core/core
- 50 V
- Voltage protection level core/earth
- 650 V
- Limiting frequency
- 2 MHz
- Connection 1
- Clamp
- Pro-active thermo-control
- No
- With remote signalling contact
- No
- Signalling at the device
- None
- Explosion-tested version
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4046356428330
- SAP 1000625399
- Code 8122589
Product Documentation
Document preview: Surge-protection device (LIT 1X2-24) — Specification sheet
More from Phoenix Contact
Phoenix Contact

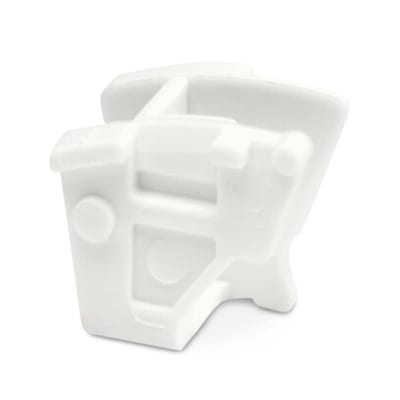

Switching Lock (S-ME 6)
Phoenix Contact

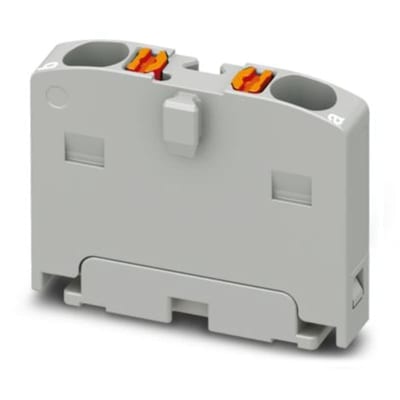

Distribution Block (PTFIX 2X1,5 GY)
Phoenix Contact

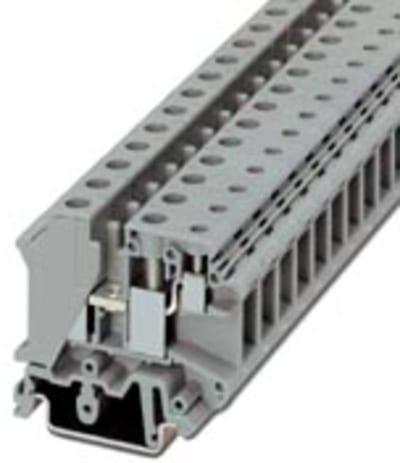

Feed-Through Terminal Block (UK 10-Plus)
UK 10-PLUS
Phoenix Contact
M8 Cable - 3PIN,3.0M,PUR
SAC-3P-M 8MS/ 3,0-PUR/M 8FS
Phoenix Contact

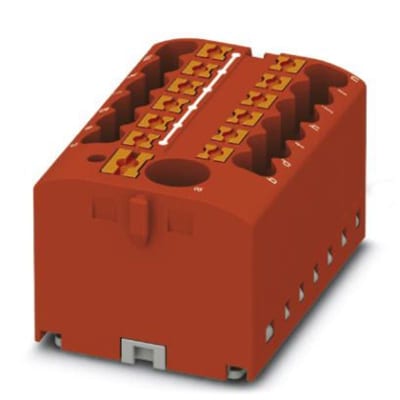

TERMINAL Plug-in 6/ 0,14-2,5 13 CONNECTION
PTFIX 6/12X2,5-G RD
Phoenix Contact

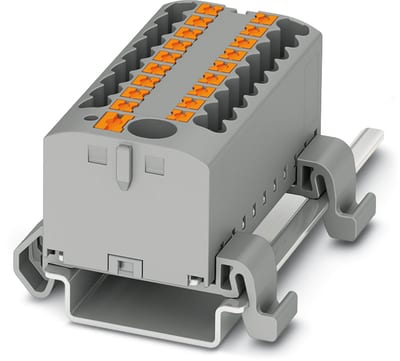

Distribution Block (PTFIX 6/6X2,5-NS35A YE)
Phoenix Contact

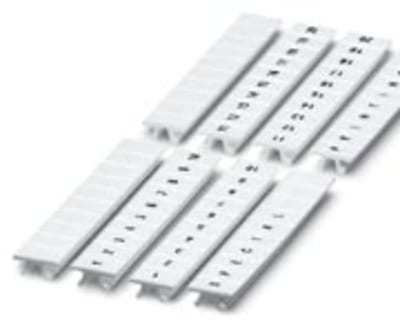

Terminal Marking ZB6 291-300
ZB 6,LGS: 291-300
Phoenix Contact

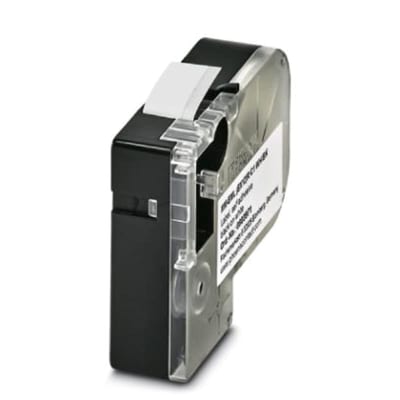

LABEL, ROLL, White EX12 (mm-EML (EX12)r C1 WH/Bk)
