Phoenix Contact

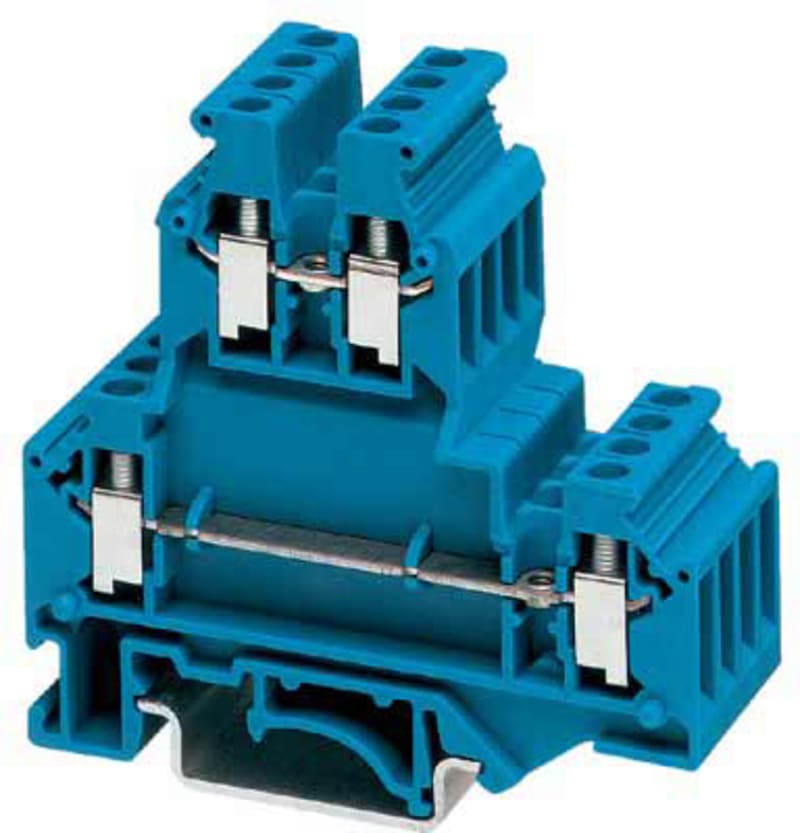

Double-Level Terminal Block (UKKB 3 BU)
Part numberUKKB 3 BUEAN / GTIN4017918068196HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UKKB 3 BU Terminal block Screw 2-tier 0,2-2,5 Blue.
Technical Specifications
- Manufacturer part number (MPN)
- UKKB 3 BU
- EAN / GTIN
- 4017918068196
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Double-Level Terminal Block
- Manufacturer order number
- 2771094
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.2–4 mm²
- Connectable conductor cross section multi-wired
- 0.2–1 mm²
- Rated current In
- 24 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 67 mm
- Depth
- 62 mm
- Length
- 67 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918068196
- SAP 1000055096
- Code 8538756
Product Documentation
Document preview: Double-Level Terminal Block (UKKB 3 BU) — Specification sheet
