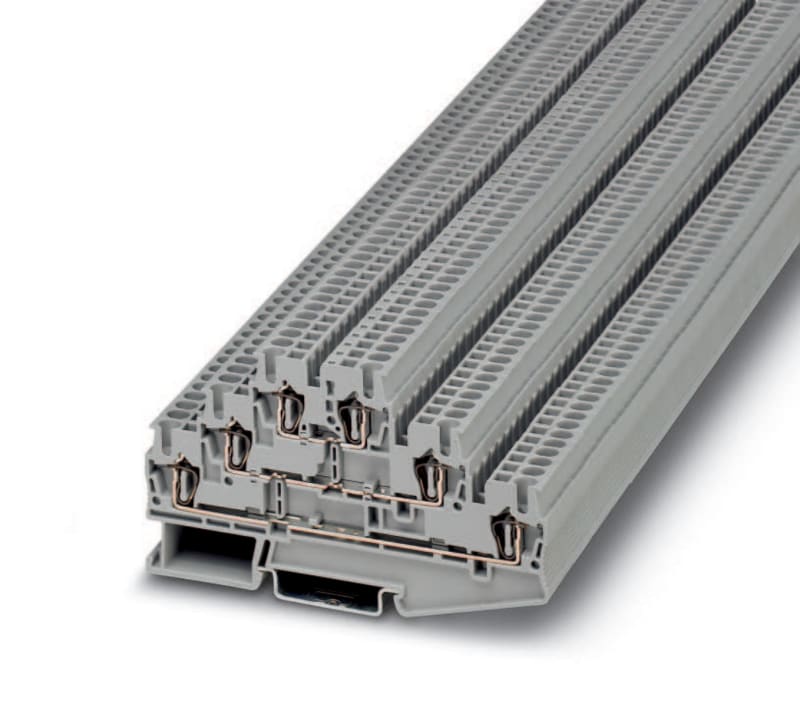

Phoenix Contact ST 2,5-3L Spring-Clamp 3-Level Terminal Block, 0.08-2.5 mm²

Phoenix Contact ST 2,5-3L is a three-level feed-through terminal block with spring-cage connections on both sides for conductors from 0.08 to 2.5 mm² (solid up to 4 mm²), rated 20 A at 500 V. Mounts on 35 mm DIN top-hat rail, 5.2 mm wide with grey housing and an operating range of -60 to 105 °C. Sold in packs of 50. Country of origin: Poland.

Manufacturer part number (MPN)

ST 2,5-3L

EAN / GTIN

4017918876173

Sales unit

pcs

Package quantity

50 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.08–4 mm²

Connectable conductor cross section multi-wired

0.08–2.5 mm²

Rated current In

20 A

Rated voltage

500 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of levels

3

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–105 °C

Width

5.2 mm

Width/grid dimension

5.2 mm

Height

99.5 mm

Depth

58 mm

Length

99.5 mm

Explosion-tested version 'Ex e'

No

Closing plate required

Yes

Colour

Grey

Internally connected stages

No

Country of origin

Poland

HS Code

8536.90

• EAN 4017918876173
• SAP 1000062798
• Code 8725811
