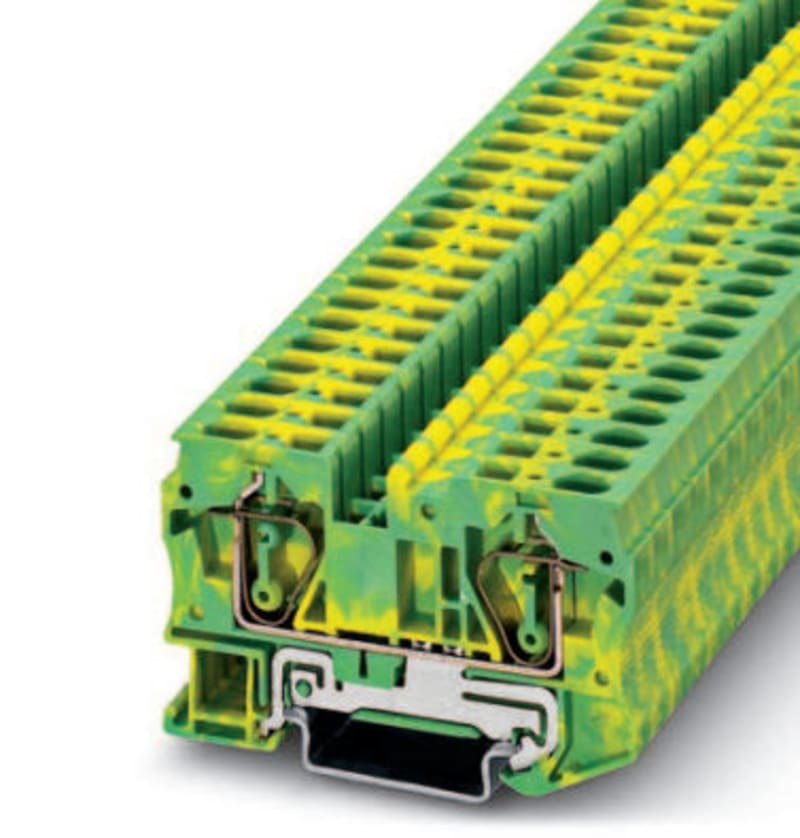

Phoenix Contact ST 6-PE Spring-Clamp Ground Terminal Block, 0.2-6.0 mm²

Phoenix Contact ST 6-PE is a single-level ground terminal block with spring-cage connection on both sides, accepting conductor cross sections of 0.2-6.0 mm² (solid up to 10 mm²). Mounts on 35 mm DIN top-hat rail, 8.2 mm wide with green/yellow housing for PE identification and an operating range of -60 to 110 °C. Sold in packs of 50. Country of origin: Germany.

Manufacturer part number (MPN)

ST 6-PE

EAN / GTIN

4017918186968

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

0.2-6.0 mm²

PEN function possible

No

Connectable conductor cross section solid-core

0.2–10 mm²

Connectable conductor cross section multi-wired

0.2–6 mm²

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Clip connection

Connection position

Atop

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

8.2 mm

Width/grid dimension

8.2 mm

Height

69.5 mm

Depth

42.2 mm

Length

69.5 mm

Closing plate required

Yes

Colour

Green/yellow

Country of origin

Germany

HS Code

8536.90

• EAN 4017918186968
• SAP 1000019558
• Code 8160990
