Omron
S8VK-C CURRENTF. 240W,24VDC,10A
Part numberS8VK-C24024EAN / GTIN4548583357921HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

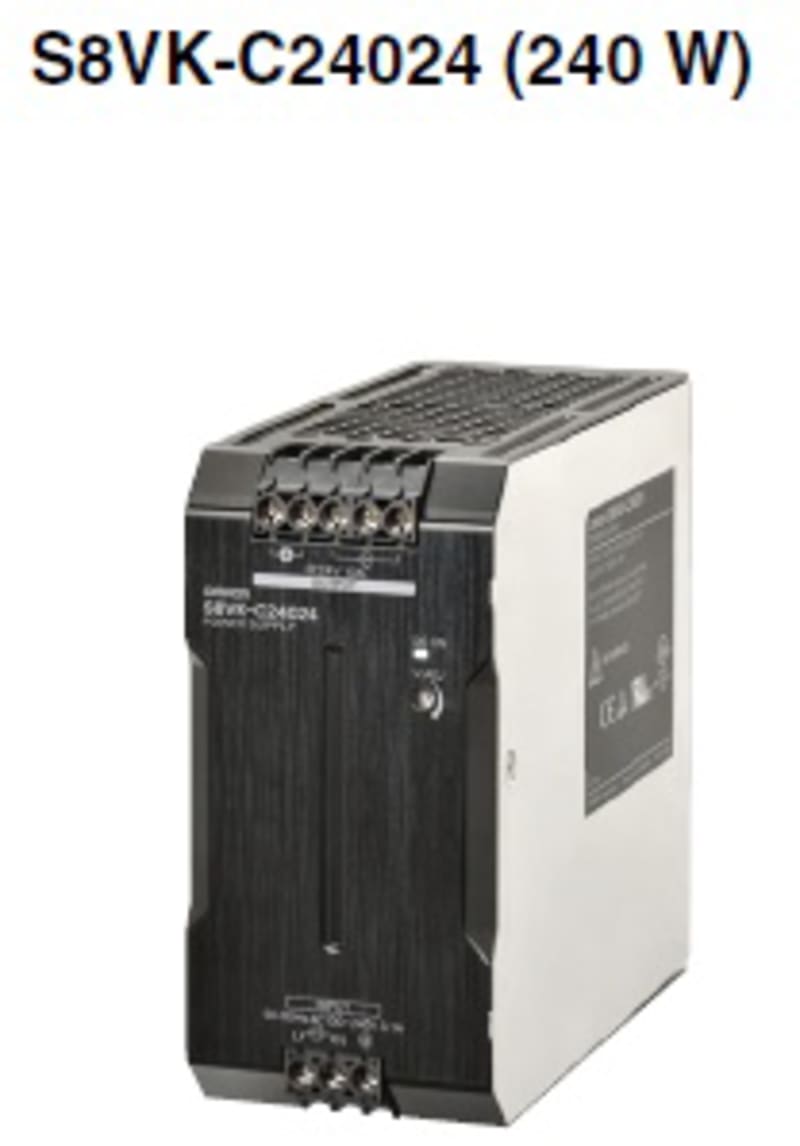

Omron S8VK-C24024 Power supply, metal housing, 60x125x140mm (W×H×D), DIN rail mounting, 1-phase 100-240VAC supply, 240W 24VDC (-10% for +10% adjustable) 10A output.
Technical Specifications
- Manufacturer part number (MPN)
- S8VK-C24024
- EAN / GTIN
- 4548583357921
- Sales unit
- pcs
- Power
- 240 W
- Voltage
- 24 V DC
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 21.6–27.6 V
- Max. output current 1
- 10 A
- Secondary voltage adjustable
- No
- Nominal value output voltage 1
- 24 V
- Nominal value output voltage 2
- -8888 V
- Nominal value output voltage 3
- -8888 V
- Nominal value output current 1
- 10 A
- Nominal value output current 2
- -8888 A
- Nominal value output current 3
- -8888 A
- Short-circuit-proof
- No
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Rated supply voltage DC
- 90–350 V
- Output voltage stabilized
- No
- Power consumption
- 299 VA
- Power output
- 240 W
- Stabilized
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 60 mm
- Built-in height
- 135 mm
- Direct mounting possible
- No
- Width
- 60 mm
- Height
- 125 mm
- Depth
- 140 mm
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4548583357921
- SAP 1000361105
- Code 8826574
Product Documentation
Document preview: S8VK-C CURRENTF. 240W,24VDC,10A (S8VK-C24024) — Specification sheet
