Omron
S8VK-C CURRENTF. 60W,24VDC,2.5A
Part numberS8VK-C06024EAN / GTIN4548583357907HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

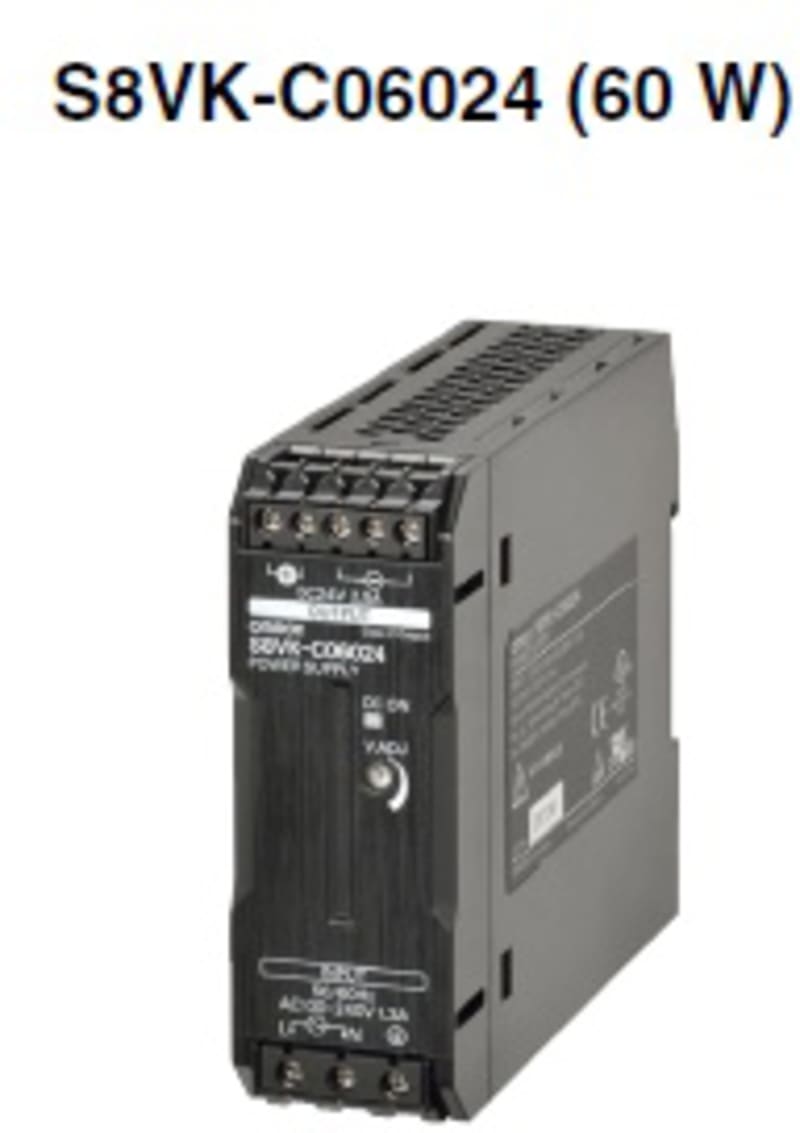

Omron S8VK-C06024 Power supply, plastic housing, 32x90x110mm (W×H×D), DIN rail mounting, 1-phase 100-240VAC supply, 60W 24VDC (-10% for +10% adjustable) 2.5A output.
Technical Specifications
- Manufacturer part number (MPN)
- S8VK-C06024
- EAN / GTIN
- 4548583357907
- Sales unit
- pcs
- Power
- 60 W
- Voltage
- 24 V DC
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 21.6–27.6 V
- Max. output current 1
- 2.5 A
- Max. output current 2
- -8888 A
- Max. output current 3
- -8888 A
- Secondary voltage adjustable
- No
- Nominal value output voltage 1
- 24 V
- Nominal value output voltage 2
- -8888 V
- Nominal value output voltage 3
- -8888 V
- Nominal value output current 1
- 2.5 A
- Nominal value output current 2
- -8888 A
- Nominal value output current 3
- -8888 A
- Short-circuit-proof
- No
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Rated supply voltage DC
- 90–350 V
- Output voltage stabilized
- No
- Power consumption
- 161 VA
- Power output
- 60 W
- Stabilized
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 32 mm
- Built-in height
- 100 mm
- Direct mounting possible
- No
- Width
- 32 mm
- Height
- 90 mm
- Depth
- 110 mm
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4548583357907
- SAP 1000361103
- Code 8826540
Product Documentation
Document preview: S8VK-C CURRENTF. 60W,24VDC,2.5A (S8VK-C06024) — Specification sheet
