Omron

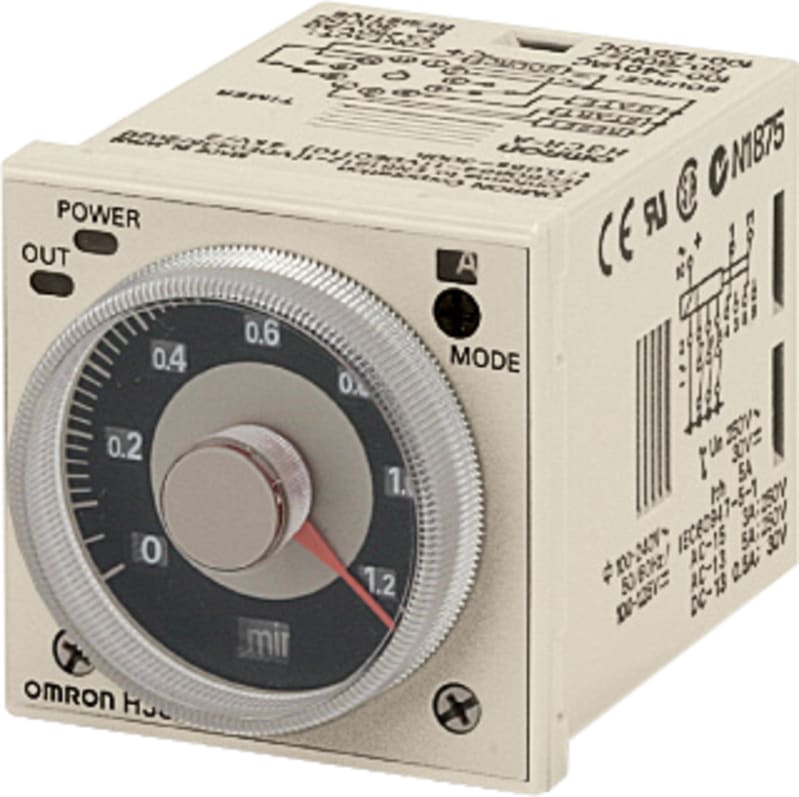

TIME Relay 48X48 8PIN Multifunk
Part numberH3CR-A8 100-240AC/110DCEAN / GTIN4536854462047HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron H3CR-A8 100-240AC/110DC Time relay, plug-in, 8-pin, DIN48x48mm, multifunction, 0.05s-300h, DPDT, 5A.
Technical Specifications
- Manufacturer part number (MPN)
- H3CR-A8 100-240AC/110DC
- EAN / GTIN
- 4536854462047
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Type of electric connection
- Plug-in connection
- Function delay-on energization
- Yes
- Function delay on de-energization
- No
- Function floating contact on energization
- Yes
- Function floating contact on de-energization
- No
- Function star-delta
- No
- Function pulse shaping
- No
- Function flashing, starting with pause, fixed time
- No
- Function flashing, starting with pulse, fixed time
- No
- Clock function, starting with pause, variable
- No
- Clock function, starting with pulse, variable
- Yes
- With plug-in socket
- No
- Remote operation possible
- No
- Suitable as remote control
- No
- Pluggable on auxiliary contact block
- No
- Rated control supply voltage AC 50 Hz
- 100–240 V
- Rated control supply voltage AC 60 Hz
- 100–240 V
- Rated control supply voltage DC
- 100–125 V
- Voltage type for actuating
- AC/DC
- Time range
- 0.05–1080000 s
- Number of outputs, delayed, change-over contact
- 2
- Outputs, reversible delayed/undelayed
- Yes
- With semiconductor output
- No
- Width
- 48 mm
- Height
- 48 mm
- Depth
- 68 mm
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4536854462047
- SAP 1000711498
- Code 8433802
Product Documentation
Document preview: TIME Relay 48X48 8PIN Multifunk (H3CR-A8 100-240AC/110DC) — Specification sheet
