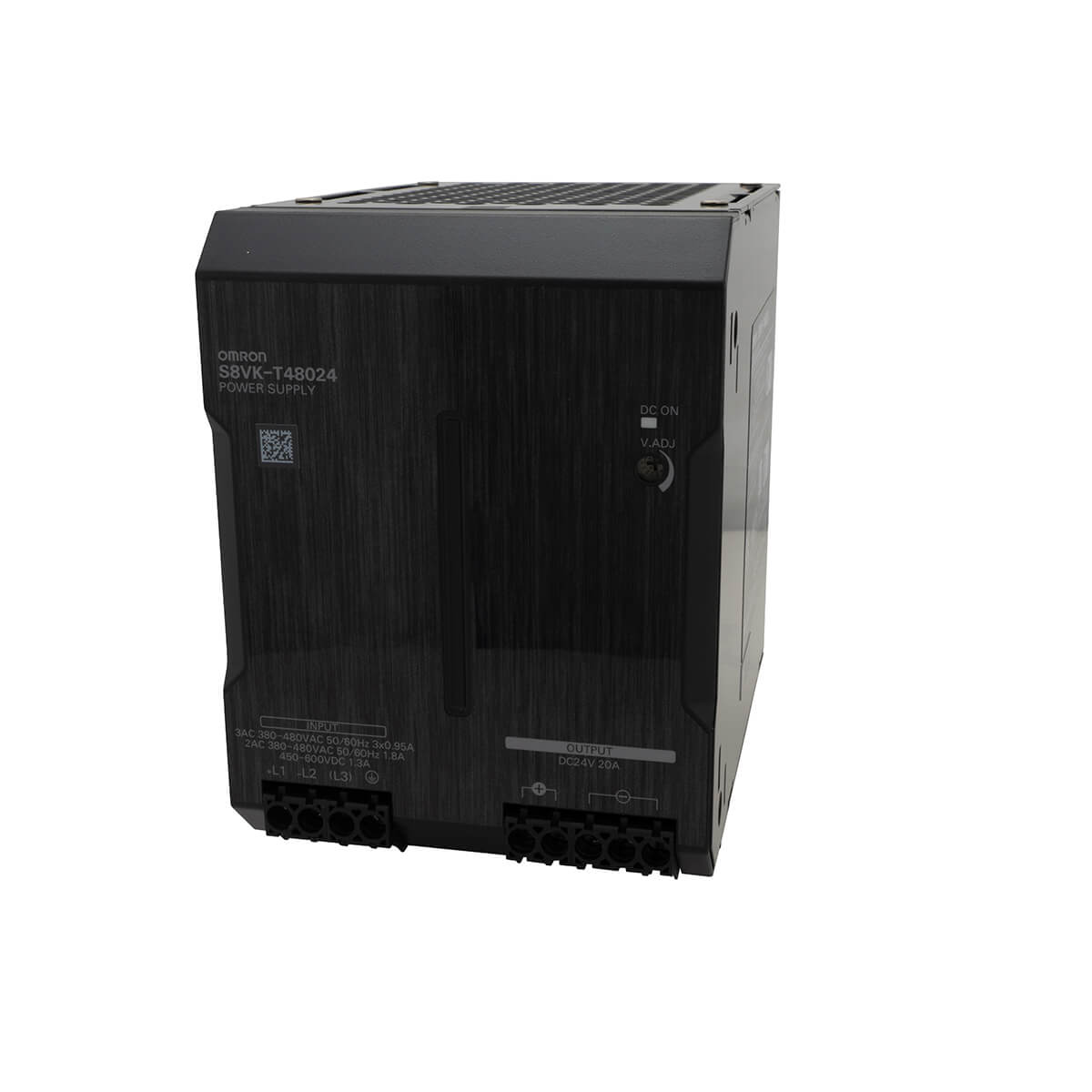

Omron S8VK-T switch-mode power supply, 480 W, 24 V DC, 20 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron S8VK-T switch-mode power supply, 480 W, 24 V DC, 20 A (S8VK-T48024). Omron S8VK-T48024, switch-mode power supply, control components / power supplies. Product type Switch-mode power supply. Series Omron S8VK-T. Product family Control Components / Power Supplies. Type DIN-rail. Mounting method DIN rail. Phase Three.
Technical Specifications
- Manufacturer part number (MPN)
- S8VK-T48024
- EAN / GTIN
- 4548583358003
- Sales unit
- pcs
- Product type
- Switch-mode power supply
- Series
- Omron S8VK-T
- Product family
- Control Components / Power Supplies
- Type
- DIN-rail
- Mounting method
- DIN rail
- Phase
- Three
- Output voltage
- 24 V
- Power output
- 480 W
- Efficiency
- 91 %
- Rated output current
- 20 A
- Power boost ratio
- 120 %
- Temperature range
- -40-70 °C
- Features
- Coated
- Terminal type
- Screw
- Rated supply voltage at AC 50 Hz
- 380-480 V
- Allowable supply voltage AC
- 320-576 V
- Allowable supply voltage DC
- 450-810 V
- Product Width (unpacked)
- 95 mm
- Product Height (unpacked)
- 125 mm
- Product Depth (unpacked)
- 140 mm
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 21.6–27.6 V
- Max. output current 1
- 20 A
- Max. output current 2
- -8888 A
- Max. output current 3
- -8888 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output voltage 2
- -8888 V
- Nominal value output voltage 3
- -8888 V
- Nominal value output current 1
- 20 A
- Nominal value output current 2
- -8888 A
- Nominal value output current 3
- -8888 A
- Short-circuit-proof
- No
- Rated supply voltage AC 50 Hz
- 380–480 V
- Rated supply voltage AC 60 Hz
- 380–480 V
- Rated supply voltage DC
- 450–600 V
- Output voltage stabilized
- No
- Power consumption
- 831 VA
- Stabilized
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 5.3
- Built-in width
- 95 mm
- Built-in height
- 125 mm
- Direct mounting possible
- No
- Width
- 95 mm
- Height
- 125 mm
- Depth
- 140 mm
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4548583358003
- SAP 1000631848
- Code 8379757
Product Documentation
More from Omron
Omron
Plastic Mounting Bracket for E3FA Photoelectric Sensor
E39-L182
Omron
MX2A2022E FR.OMF 2.2kW 3X230
3G3MX2-A2022-E
Omron
Omron S8VS-A/B switch-mode power supply, 240 W, 24 V DC, 10 A (S8VS24024BP)
Omron
MX2A2015E FR.OMF 1.5kW 3X230
3G3MX2-A2015-E
Omron
Cable M12 STRAIGHT 4-Pin PVC 10M
XS2F-M12PVC4S10M
Omron
Interface-Relay/SSR (G3R-ODX02SN-UTU 5-24DC)
Omron
M18,PLASTIC,DIR100CM,PNP,M12 PLU (E3FA-DP26-F2)
Omron
AXFIM2010RE RFI FI. 10A 3X230
AX-FIM2010-RE
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy S8VK-T48024?
- S8VK-T48024 can be ordered from cballast.com as a Omron catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Omron product?
- The manufacturer part number is S8VK-T48024.
- What is the HS code for S8VK-T48024?
- The customs tariff (HS) code for S8VK-T48024 is 8504.40.
- Who manufactures S8VK-T48024?
- S8VK-T48024 is a Omron product in the Control & Automation range.
- Is a datasheet available for S8VK-T48024?
- Yes — the S8VK-T48024 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for S8VK-T48024?
- The minimum order quantity is 1.
- Is S8VK-T48024 available?
- Yes — S8VK-T48024 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
