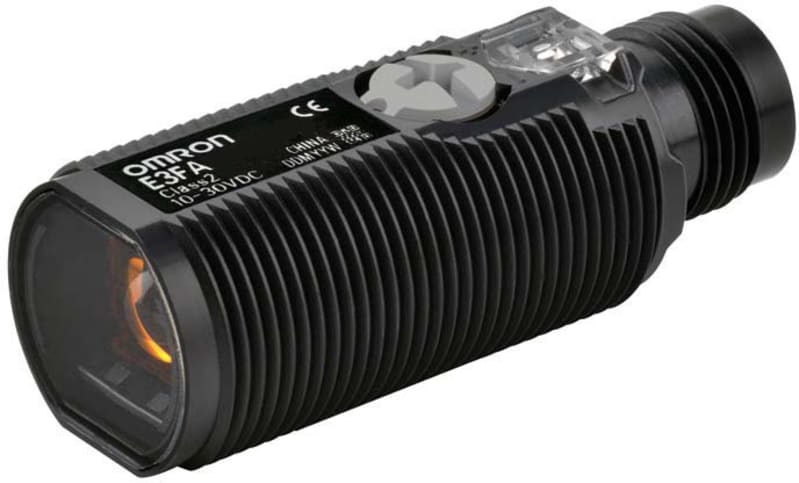

M18,PLASTIC,DIR100CM,PNP,M12 PLU (E3FA-DP26-F2)

Omron E3FA-DP26-F2 Photocell, M18, plastic housing, IR LED, direct-sensing, 1m, PNP, L-ON/D-ON selectable/inverted logic, M12 plug.

Manufacturer part number (MPN)

E3FA-DP26-F2

EAN / GTIN

4548583499508

Sales unit

pcs

Connection

M12 plug

Thread size

M18

Output type

PNP

Housing material

Plastic

Sensing method

Diffuse-reflective

Sensing distance

100 cm

Voltage type

DC

Max. output current

100 mA

Suitable for safety functions

No

Ambient temperature

-25–55 °C

With time function

No

With reflector

No

Switching frequency

2000 Hz

Number of semiconductor outputs with signalling function

1

Type of electric connection

Connector M12

Type of switching output

PNP

Type of switch function

Programmable/configurable

Rated control supply voltage DC

10–30 V

Operation agent-safety class

Safety class 3

Setting procedure

Manual adjustment

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cylinder, screw-thread

Laser protection class

None

Type of light

Infrared light

Light dot

18000 mm²

Max. output current at protected output

100 mA

Min. reflector distance

-8888 mm

With monitoring function downstream switching devices

No

With restart blockage

No

Response time

0.5 ms

Transmission range of the safety field

-8888 m

Switching voltage of OSSD at state "high"

-8888 V

Type of safety according to IEC 61496-1

1

Operating distance

5–1000 mm

Pre failure notice

No

Wavelength of the sensor

850 nm

Material of optical surface

Plastic

Degree of protection (IP)

IP67

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

Analogue output 4 mA ... 20 mA

No

AWG-number

23

Width sensor

15 mm

Diameter sensor

18 mm

Height of sensor

18 mm

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Length of sensor

45 mm

Max. switching distance

1000 mm

With other analogue output

No

Sensing mode

Light-/dark switching

Country of origin

China

HS Code

8541.42
