Omron

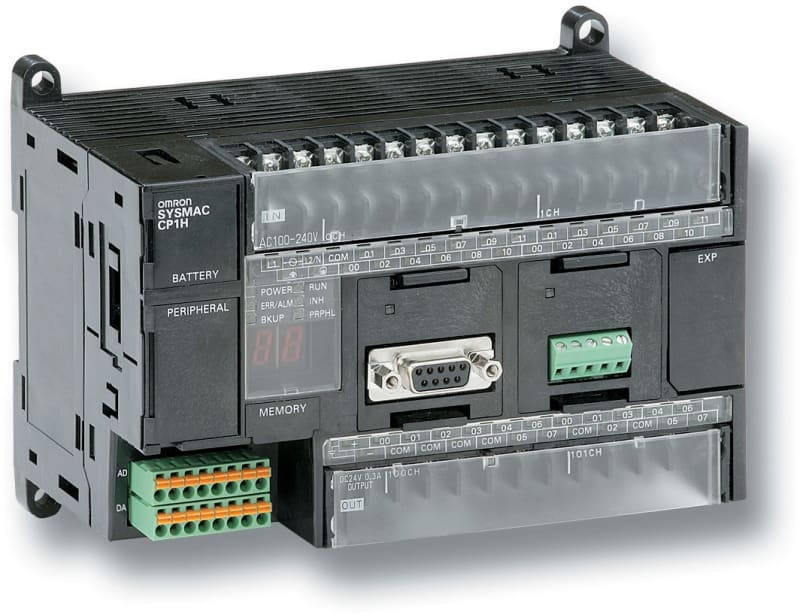

PLS 24INN/16UT 230VAC
Part numberCP1H-X40DR-AEAN / GTIN4547648203579HS code8536.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron CP1H-X40DR-A PLS, 20K steg program, 32K ord data minne, 100-240VAC supply, 24x 24VDC input, 16x relay output 2A, USB programmeringsport.
Technical Specifications
- Manufacturer part number (MPN)
- CP1H-X40DR-A
- EAN / GTIN
- 4547648203579
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V AC
- Width
- 150 mm
- Model
- Compact
- Height
- 90 mm
- Depth
- 85 mm
- With display
- No
- Suitable for safety functions
- No
- Number of digital inputs
- 24
- Number of digital outputs
- 16
- Voltage type (supply voltage)
- AC
- Type of memory
- FLASH
- Memory size
- 184 kByte
- Processing time (1K, binary operation)
- 0.1 ms
- Max. number of addressable analogue I/O-ports
- 16
- Max. number of addressable digital I/O-ports
- 320
- Supporting protocol for LON
- No
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Additional program memory possible
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Redundancy
- No
- Suitable for rail mounting
- Yes
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- System accessory
- No
- Appendant operation agent (Ex ia)
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Wall mounting/direct mounting
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- IO link master
- No
- Number of relay outputs
- 16
- Max. number of time switches
- 4090
- Performance level according to EN ISO 13849-1
- Level a
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supply voltage AC 50 Hz
- 85–264 V
- Supply voltage AC 60 Hz
- 85–264 V
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- SIL according to IEC 61508
- None
- Supporting protocol for IEC 61850 Ethernet
- No
- Supporting protocol for DNP3
- No
- Supporting protocol for IEC 60870
- No
- Supporting protocol for EtherCAT
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4547648203579
- SAP 1000711740
- Code 8676938
Product Documentation
Document preview: PLS 24INN/16UT 230VAC (CP1H-X40DR-A) — Specification sheet
