Omron
M18,METAL,SEN/MOT,20M,PNP,2M (E3FB-TP11 2M Oms)
Part numberE3FB-TP11 2M OMSEAN / GTIN4548583360204HS code8544.42
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

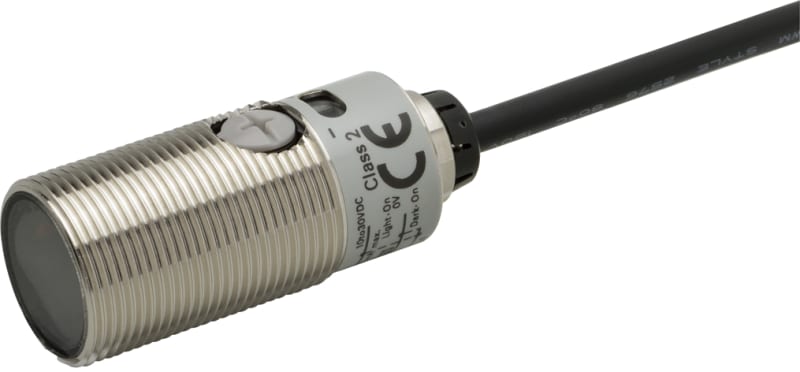

Omron E3FB-TP11 2M OMS Photocell, M18, metal housing, red LED, sender/mottaker, 20m, PNP, L-ON/D-ON selectable, 2m cable.
Technical Specifications
- Manufacturer part number (MPN)
- E3FB-TP11 2M OMS
- EAN / GTIN
- 4548583360204
- HS code
- 8544.42
- Sales unit
- pcs
- Output type
- PNP
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. opening angle
- 2 °
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 20000 mm
- Max. switching distance
- 20000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of contact energized outputs with signalling function
- 1
- Type of electric connection
- Cable
- Type of switching output
- PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 44 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Ambient temperature
- -25–55 °C
- Response time
- 0.5 ms
- Transmission range of the safety field
- 20 m
- Switching frequency
- 2000 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 624 nm
- Type of light
- Polarity free red light
- AWG-number
- 26
- Material of cable sheath
- Polyvinyl chloride (PVC)
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4548583360204
- SAP 1000344053
- Code 81006923
Product Documentation
Document preview: M18,METAL,SEN/MOT,20M,PNP,2M (E3FB-TP11 2M Oms) — Specification sheet
