Omron
E3JK for Celle DIR. 2,5M AC/DC
Part numberE3JK-DR11 2MEAN / GTIN4548583398740HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

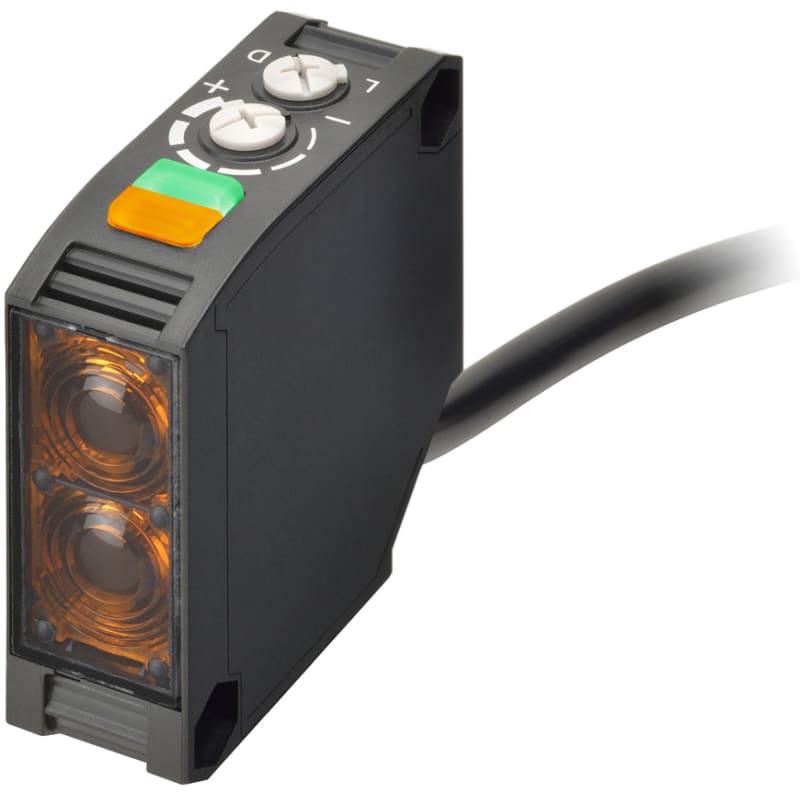

Omron E3JK-DR11 2M Photocell, direct sensing, 2500mm, AC/DC, relay, L-ON/D-ON selectable, 2m cable.
Technical Specifications
- Manufacturer part number (MPN)
- E3JK-DR11 2M
- EAN / GTIN
- 4548583398740
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage type
- AC/DC
- Max. output current
- 3000 mA
- Housing material
- Plastic
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- With reflector
- No
- Switching frequency
- 50 Hz
- Number of contact energized outputs with signalling function
- 1
- Type of electric connection
- Cable
- Type of switching output
- Relay contact
- Type of switch function
- Programmable/configurable
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- Operation agent-safety class
- Safety class 2
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Laser protection class
- None
- Type of light
- Polarity free red light
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 20 ms
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 5–2500 mm
- Pre failure notice
- No
- Wavelength of the sensor
- 624 nm
- Material of optical surface
- Plastic
- Material of cable sheath
- Polyvinyl chloride (PVC)
- Degree of protection (IP)
- IP64
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- AWG-number
- 22
- Width sensor
- 18 mm
- Height of sensor
- 50 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 50 mm
- Max. switching distance
- 2500 mm
- With other analogue output
- No
- Sensing mode
- Light-/dark switching
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4548583398740
- SAP 1000361092
- Code 8804998
Product Documentation
Document preview: E3JK for Celle DIR. 2,5M AC/DC (E3JK-DR11 2M) — Specification sheet
