Omron

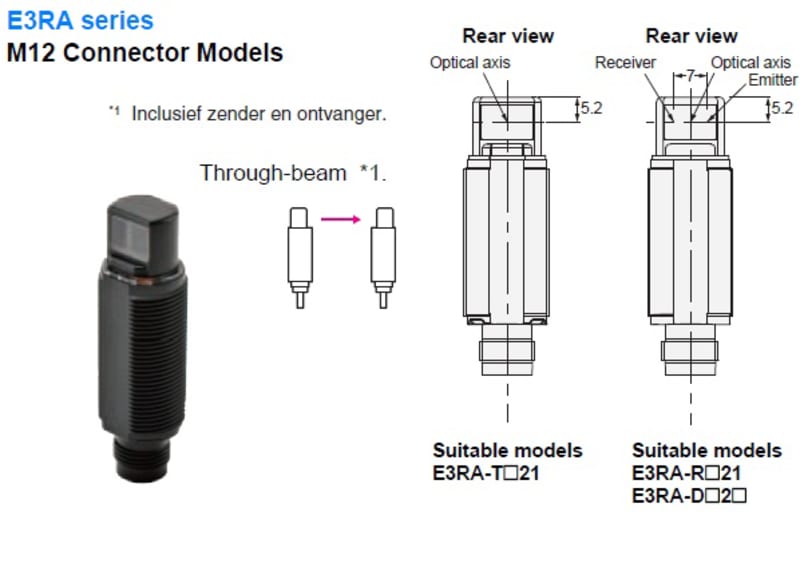

M18,PL,VINK,DIR10CM,PNP,M12 PL (E3RADP21)
Part numberE3RADP21EAN / GTIN4548583312913HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3RADP21 Photocell, M18, plastic housing angled, direct-sensing, 100mm, PNP, M12 plug.
Technical Specifications
- Manufacturer part number (MPN)
- E3RADP21
- EAN / GTIN
- 4548583312913
- Sales unit
- pcs
- Connection
- M12 plug
- Thread size
- M18
- Output type
- PNP
- Sensing method
- Diffuse-reflective
- Sensing distance
- 10 cm
- Voltage type
- DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- With reflector
- No
- Switching frequency
- 2000 Hz
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Rated control supply voltage DC
- 10–30 V
- Operation agent-safety class
- Safety class 3
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Polarity free red light
- Light dot
- 1400 mm²
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 0.5 ms
- Type of safety according to IEC 61496-1
- 1
- Pre failure notice
- No
- Wavelength of the sensor
- 624 nm
- Material of optical surface
- Plastic
- Degree of protection (IP)
- IP67
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- AWG-number
- 23
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 15 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 57.9 mm
- Max. switching distance
- 100 mm
- With other analogue output
- No
- Sensing mode
- Light-/dark switching
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4548583312913
- SAP 1000338762
- Code 81093807
Product Documentation
Document preview: M18,PL,VINK,DIR10CM,PNP,M12 PL (E3RADP21) — Specification sheet
