Omron

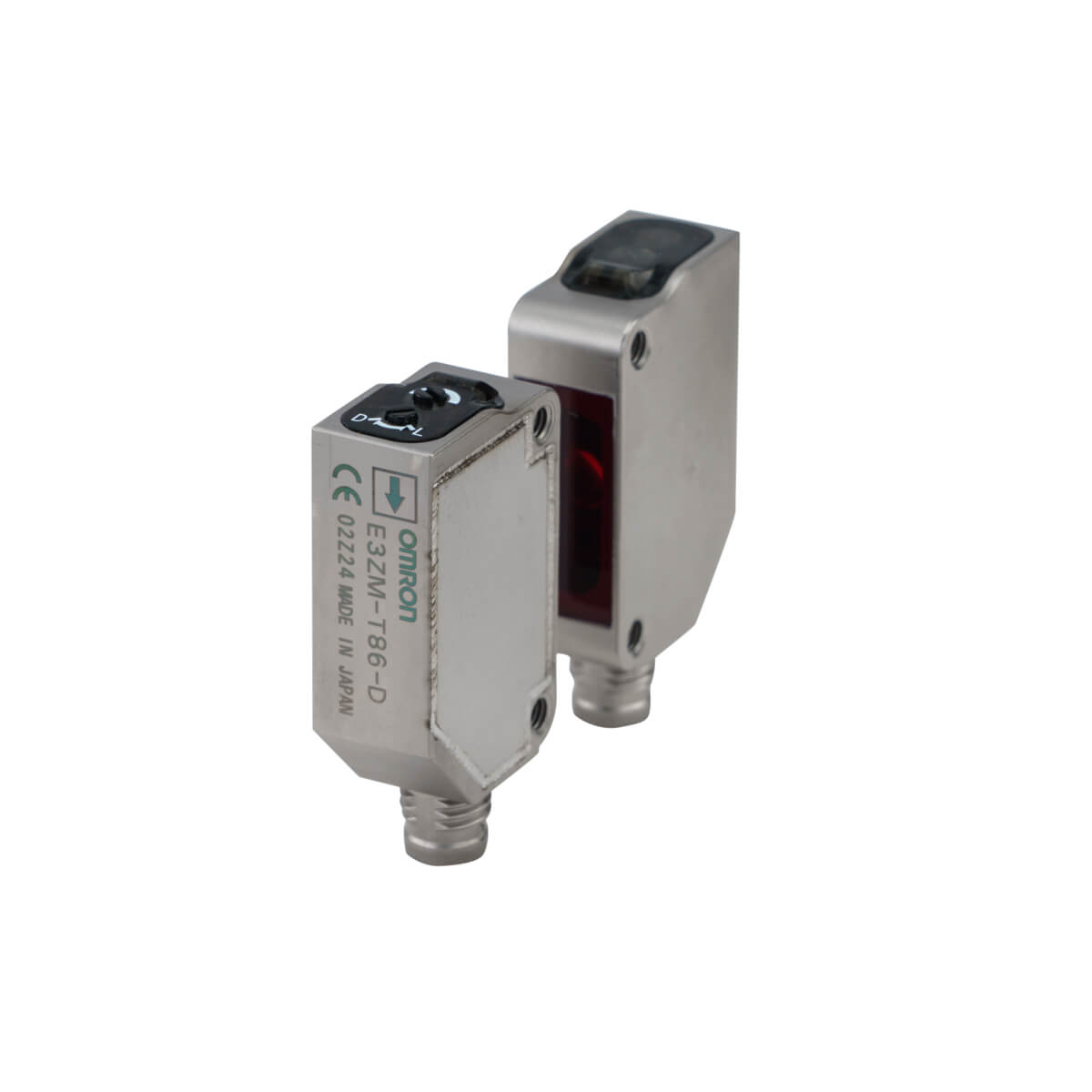

Omron E3ZM photoelectric sensor, sensing distance 15000 mm
Part numberE3ZM-T86EAN / GTIN4547648235815HS code8541.42
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3ZM photoelectric sensor, sensing distance 15000 mm (E3ZM-T86). Omron E3ZM-T86, photoelectric sensor, sensing / photoelectric sensors. Product type Photoelectric sensor. Series Omron E3ZM. Product family Sensing / Photoelectric Sensors. Shape Cuboid. Sensing method Through-beam. Sensing distance 15000 mm.
Technical Specifications
- Manufacturer part number (MPN)
- E3ZM-T86
- EAN / GTIN
- 4547648235815
- Sales unit
- pcs
- Product type
- Photoelectric sensor
- Series
- Omron E3ZM
- Product family
- Sensing / Photoelectric Sensors
- Shape
- Cuboid
- Sensing method
- Through-beam
- Sensing distance
- 15000 mm
- Setting method
- Manual adjustment
- Connection method
- Connector M8 - 4 pin
- Output type
- PNP
- Operation mode
- Dark-ON, Light-ON
- Response time
- 1 ms
- Material housing
- Stainless steel
- Thread size
- Other
- Product Width (unpacked)
- 10.8 mm
- Product Height (unpacked)
- 32.2 mm
- Product Depth (unpacked)
- 21 mm
- Type of light
- Infrared light
- Power supply voltage
- 10-30 V
- Degree of protection (IP)
- IP67/IP69K
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. opening angle
- 3 °
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 15000 mm
- Max. switching distance
- 15000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 3
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 10.8 mm
- Diameter sensor
- -8888 mm
- Height of sensor
- 32.2 mm
- Length of sensor
- 21 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- -8888 mA
- Min. reflector distance
- -8888 mm
- Ambient temperature
- -25–55 °C
- Transmission range of the safety field
- 15 m
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Switching voltage of OSSD at state "high"
- -8888 V
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 870 nm
- AWG-number
- 24
- With restart blockage
- No
- Suitable for safety functions
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8541.42
Cross References
- EAN 4547648235815
- SAP 1000158758
- Code 8666105
Product Documentation
Document preview: Omron E3ZM photoelectric sensor, sensing distance 15000 mm (E3ZM-T86) — Specification sheet
