Omron

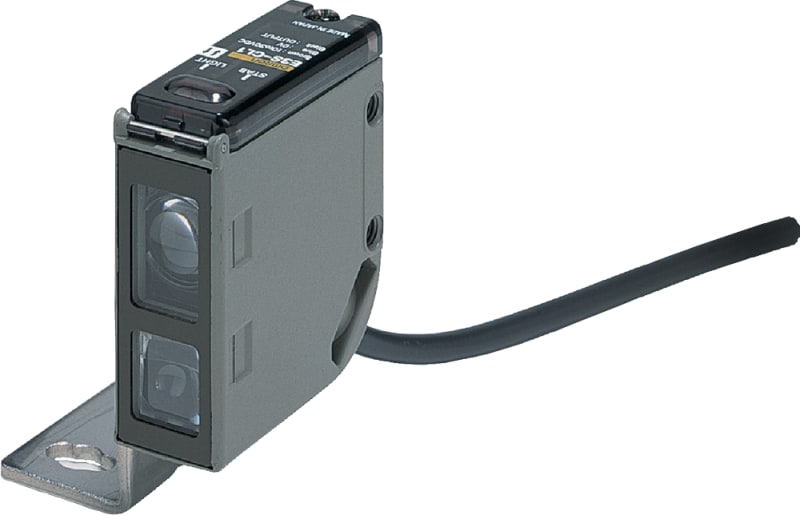

PHOTOCELL,REKT,BGS/DIFF 5-50cm (E3S-CL2)
Part numberE3S-CL2EAN / GTIN4536853284428HS code8544.42
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3S-CL2 Photocell background suppression, 5-500mm, NPN/PNP, 2m cable.
Technical Specifications
- Manufacturer part number (MPN)
- E3S-CL2
- EAN / GTIN
- 4536853284428
- HS code
- 8544.42
- Sales unit
- pcs
- Adjustment range
- 50–500 mm
- Triangulation
- Background fade-out
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 500 mm
- Max. switching distance
- 500 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Cable
- Type of switching output
- PNP/NPN
- Type of switch function
- Change-over contact (NO/NC)
- Operation agent-safety class
- Safety class 2
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 15.4 mm
- Height of sensor
- 43.7 mm
- Length of sensor
- 40 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 50 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 100 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 860 nm
- Type of light
- Infrared light
- AWG-number
- 24
- Material of cable sheath
- Polyvinyl chloride (PVC)
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- China
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4536853284428
- SAP 1000711611
- Code 8676837
Product Documentation
Document preview: PHOTOCELL,REKT,BGS/DIFF 5-50cm (E3S-CL2) — Specification sheet
