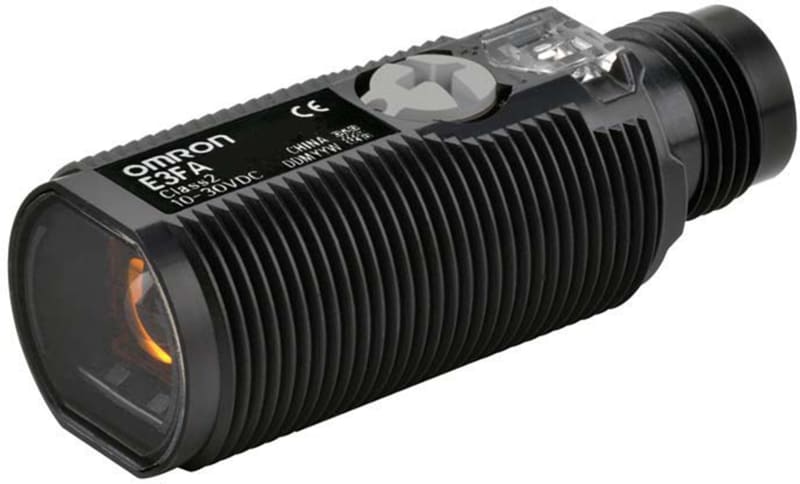

M18,PLASTIC,BGS10CM,PNP,M12 Plug (E3FA-LP21-F2)

Omron E3FA-LP21-F2 Photocell, M18, plastic housing, red LED, BGS, 100mm, PNP, L-ON/D-ON selectable/inverted logic, M12 plug.

Manufacturer part number (MPN)

E3FA-LP21-F2

EAN / GTIN

4548583499515

Sales unit

pcs

Connection

M12 plug

Thread size

M18

Output type

PNP

Housing material

Plastic

Sensing method

Background suppression

Sensing distance

10 cm

Adjustment range

0–100 mm

Triangulation

Background fade-out

Pre failure notice

No

With time function

No

Rated switching distance

100 mm

Max. switching distance

100 mm

Max. output current

100 mA

With reflector

No

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output 4 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

With other analogue output

No

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Number of semiconductor outputs with signalling function

1

Type of electric connection

Connector M12

Type of switching output

PNP

Type of switch function

Programmable/configurable

Operation agent-safety class

Safety class 3

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cylinder, screw-thread

Width sensor

15 mm

Diameter sensor

18 mm

Height of sensor

18 mm

Length of sensor

45 mm

Sensing mode

Light-/dark switching

Material of optical surface

Plastic

Max. output current at protected output

100 mA

Min. reflector distance

0 mm

Ambient temperature

-25–55 °C

Response time

0.5 ms

Transmission range of the safety field

-8888 m

Switching frequency

2000 Hz

Type of safety according to IEC 61496-1

1

Switching voltage of OSSD at state "high"

-8888 V

Rated control supply voltage DC

10–30 V

Voltage type

DC

With monitoring function downstream switching devices

No

Laser protection class

None

Wavelength of the sensor

624 nm

Type of light

Polarity free red light

Light dot

100 mm²

AWG-number

24

Material of cable sheath

Polyvinyl chloride (PVC)

With restart blockage

No

Suitable for safety functions

No

Degree of protection (IP)

IP67

Operating distance

0–100 mm

Country of origin

China

HS Code

8541.42
