Omron

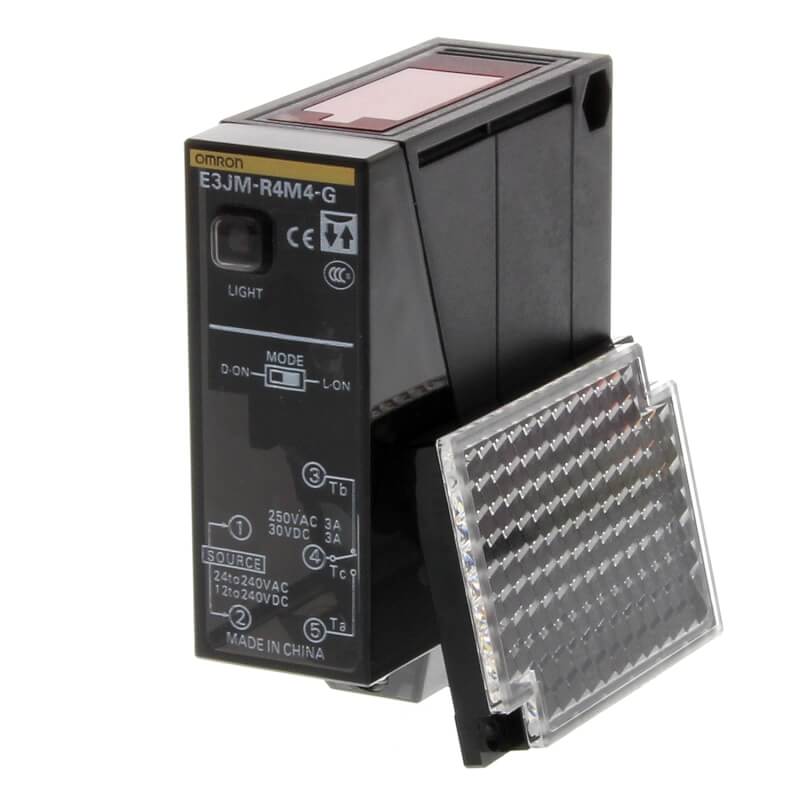

E3JM-R4M4-G (E3JM2106M)
Part numberE3JM2106MEAN / GTIN4550431045317HS code9032.89
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3JM2106M E3JM-R4M4-G.
Technical Specifications
- Manufacturer part number (MPN)
- E3JM2106M
- EAN / GTIN
- 4550431045317
- Sales unit
- pcs
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 4000 mm
- Max. switching distance
- 6000 mm
- Max. output current
- 3000 mA
- With reflector
- Yes
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of contact energized outputs with signalling function
- 1
- Type of electric connection
- Screw connection
- Type of switching output
- Relay contact
- Type of switch function
- Change-over contact (NO/NC)
- Operation agent-safety class
- Safety class 2
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 25 mm
- Height of sensor
- 80 mm
- Length of sensor
- 75 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Min. reflector distance
- 1000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 30 ms
- Switching frequency
- 16 Hz
- Rated control supply voltage AC 50 Hz
- 100–240 V
- Rated control supply voltage AC 60 Hz
- 100–240 V
- Rated control supply voltage DC
- 24–240 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 660 nm
- Type of light
- Polarized red light
- Light dot
- 32000 mm²
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP66
- Country of origin
- China
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4550431045317
- SAP 1200738783
- Code 83875030
Product Documentation
Document preview: E3JM-R4M4-G (E3JM2106M) — Specification sheet
