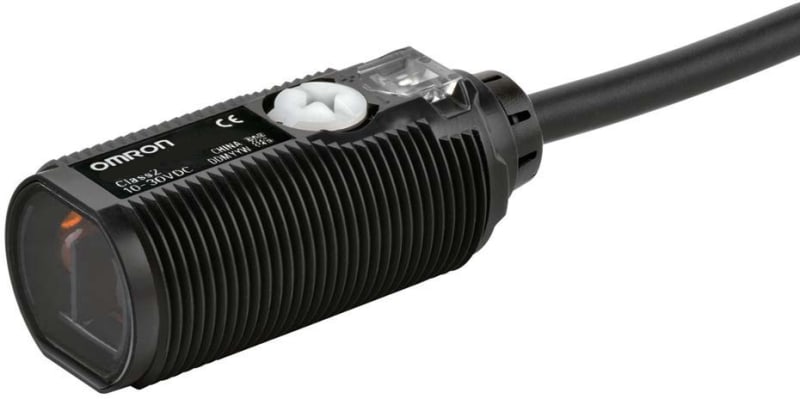

M18,PLASTIC,DIR30CM,PNP,2M Cable (E3FA-DP15-F2 2M)

Omron E3FA-DP15-F2 2M Photocell, M18, plastic housing, IR LED, direct-sensing, 300mm, PNP, L-ON/D-ON selectable/inverted logic, 2m cable.

Manufacturer part number (MPN)

E3FA-DP15-F2 2M

EAN / GTIN

4548583499454

HS code

8544.42

Sales unit

pcs

Output type

PNP

Voltage type

DC

Max. output current

100 mA

Housing material

Plastic

Suitable for safety functions

No

Ambient temperature

-25–55 °C

With time function

No

With reflector

No

Switching frequency

2000 Hz

Number of semiconductor outputs with signalling function

1

Type of electric connection

Cable

Type of switching output

PNP

Type of switch function

Programmable/configurable

Rated control supply voltage DC

10–30 V

Operation agent-safety class

Safety class 3

Setting procedure

Manual adjustment

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cylinder, screw-thread

Laser protection class

None

Type of light

Infrared light

Light dot

2000 mm²

Max. output current at protected output

100 mA

Min. reflector distance

-8888 mm

With monitoring function downstream switching devices

No

With restart blockage

No

Response time

0.5 ms

Transmission range of the safety field

-8888 m

Switching voltage of OSSD at state "high"

-8888 V

Type of safety according to IEC 61496-1

1

Operating distance

5–300 mm

Pre failure notice

No

Wavelength of the sensor

850 nm

Material of optical surface

Plastic

Material of cable sheath

Polyvinyl chloride (PVC)

Degree of protection (IP)

IP67

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

Analogue output 4 mA ... 20 mA

No

AWG-number

24

Width sensor

15 mm

Diameter sensor

18 mm

Height of sensor

18 mm

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Length of sensor

41 mm

Max. switching distance

300 mm

With other analogue output

No

Sensing mode

Light-/dark switching

Country of origin

China

HS Code

8544.42

• EAN 4548583499454
• SAP 1000631834
• Code 8379732
