Omron
CPU, 24DC 18/12 In/O PNP, 3 EXP
Part numberCP1LM30DT1DEAN / GTIN4547648359788HS code8471.41
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron CP1LM30DT1D CP1L PLS CPU, 24VDC supply, 18x 24VDC input, 12x PNP output 0.3A, 10Ksteg program, 32Kord data minne.
Technical Specifications
- Manufacturer part number (MPN)
- CP1LM30DT1D
- EAN / GTIN
- 4547648359788
- Sales unit
- pcs
- Output type
- PNP

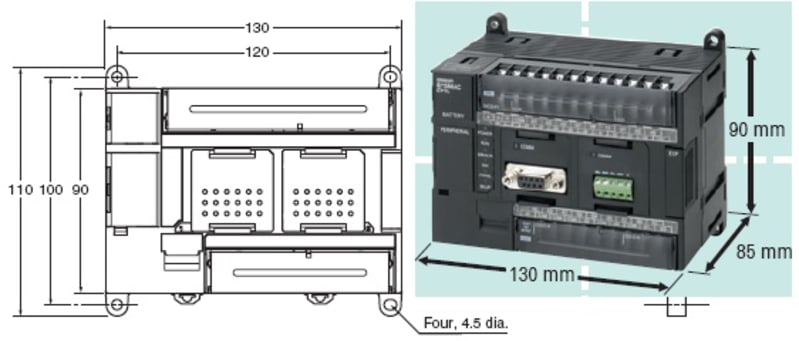

- Width
- 130 mm
- Model
- Compact
- Height
- 90 mm
- Depth
- 85 mm
- With display
- No
- Suitable for safety functions
- No
- Number of digital inputs
- 18
- Number of digital outputs
- 12
- Number of analogue inputs
- 1
- Voltage type (supply voltage)
- DC
- Type of memory
- FLASH
- Memory size
- 144 kByte
- Processing time (1K, binary operation)
- 0.55 ms
- Supporting protocol for LON
- No
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Additional program memory possible
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Redundancy
- No
- Suitable for rail mounting
- Yes
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- System accessory
- No
- Appendant operation agent (Ex ia)
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Wall mounting/direct mounting
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- IO link master
- No
- Max. number of time switches
- 4096
- Performance level according to EN ISO 13849-1
- Level a
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supply voltage DC
- 20.4–26.4 V
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- SIL according to IEC 61508
- None
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8471.41
Cross References
- EAN 4547648359788
- SAP 1000162061
- Code 8855504
Product Documentation
Document preview: CPU, 24DC 18/12 In/O PNP, 3 EXP (CP1LM30DT1D) — Specification sheet
More from Omron
Omron
Omron Cable Between NB HMI and PLC 2m XW2Z-200T
Omron
Omron D4N safety switch
D4N-8131
Omron
MINI Contactor 9A/24VDC 1NO
J7KNA-09-10 24VS
Omron
FR.OMF 2.2kW 1X230
MX2AB022E
Omron
Mounting bracket E3Z, Stainless (E39-L104)
Omron
Omron S8VK-S switch-mode power supply, 60 W, 24 V DC, 2.5 A
S8VK-S06024
Omron
FR.OMF 1.1kW 3X400
MX2A4007E
Omron
Mounting bracket E3Z, Stainless (E39-L43)
