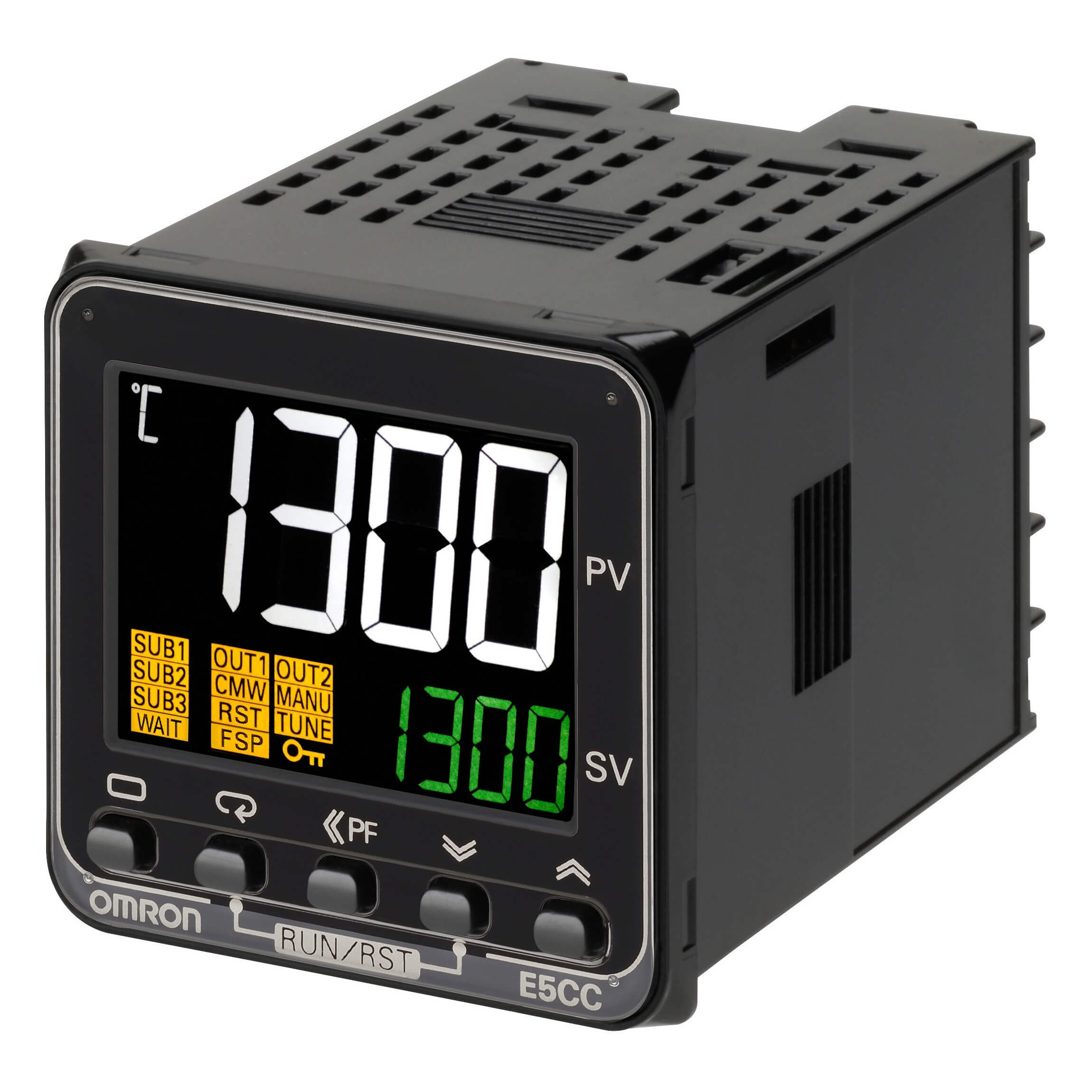

Omron E5_C temperature controller, screw terminals (E5CC-QX3D5M-000)
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E5_C temperature controller, screw terminals (E5CC-QX3D5M-000). Omron E5CC-QX3D5M-000, temperature controller, control components / temperature controllers & sensors / temperature controllers. Product type Temperature controller. Series Omron E5_C. Product family Control Components / Temperature Controllers & Sensors / Temperature Controllers. Size 1/16 DIN (48 x 48 mm). Functions ON/OFF control, PID control. Number of control loops 1.
Technical Specifications
- Manufacturer part number (MPN)
- E5CC-QX3D5M-000
- EAN / GTIN
- 4548583087972
- Sales unit
- pcs
- Voltage
- 24 V AC
- Product type
- Temperature controller
- Series
- Omron E5_C
- Product family
- Control Components / Temperature Controllers & Sensors / Temperature Controllers
- Size
- 1/16 DIN (48 x 48 mm)
- Functions
- ON/OFF control, PID control
- Number of control loops
- 1
- Temperature input type
- B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
- Linear analog input type
- 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- Temperature range
- -200-2300 °C
- Number of event inputs
- 0
- Number of alarm outputs
- 3
- Supply voltage AC
- 20.4-26.4 V
- Control output
- Voltage pulse
- Terminal type
- Screw
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 21.6–26.4 V
- Rated control supply voltage AC 60 Hz
- 21.6–26.4 V
- Rated control supply voltage DC
- 21.6–26.4 V
- Voltage type for actuating
- AC/DC
- With detachable clamps
- No
- Number of measuring circuits
- 1
- Error registration possible
- No
- External reset possible
- No
- Number of contacts as normally open contact
- 3
- Temperature measuring range
- -200–2300 °C
- Width
- 48 mm
- Height
- 48 mm
- Depth
- 73 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9032.10
Cross References
- EAN 4548583087972
- SAP 1000255975
- Code 81141252
