Omron D4NS safety switch (D4NS-4CF)
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron D4NS safety switch (D4NS-4CF). Omron D4NS-4CF, safety switch, safety / safety switches. Product type Safety switch. Series Omron D4NS. Product family Safety / Safety Switches. Door switch type Key-operated. Guard-lock FALSE. Material housing Resin.
Technical Specifications
- Manufacturer part number (MPN)
- D4NS-4CF
- EAN / GTIN
- 4536854963759
- Sales unit
- pcs
- Contact configuration
- 2 NC / 1 NO
- Product type
- Safety switch
- Series
- Omron D4NS
- Product family
- Safety / Safety Switches
- Door switch type
- Key-operated
- Guard-lock
- FALSE
- Material housing
- Resin
- Ambient temperature (operating)
- -30-70 °C
- Direction of operation
- Adjustable
- Door contacts NC
- 2
- Door contacts NO
- 1
- Switch action
- Slow action
- Connection method
- Terminal block
- Cable length
- 0 m
- Degree of protection (IP)
- IP67
- Conduit size
- M20
- Shape
- Cuboid
- Overall length of sensor
- 96 mm
- Height of sensor
- 30 mm
- Width of sensor
- 31 mm
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Forced opening
- No
- Type of interface
- None
- Width sensor
- 31 mm
- Length of sensor
- 96 mm
- Ambient temperature during operating
- -30–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4536854963759
- SAP 1000158827
- Code 8207274
Product Documentation
More from Omron
Omron
Photocell (E3ZD87)
Omron
Laser PNP REFL. FOR AVST 15M 2M
E3Z-LR81 2M
Omron
PLUG M12 4-Pin HUN 3-8mm CABLE
XS5C0030A
Omron
Omron H3CR-A8E Multifunction Time Relay 48x48 mm 8-Pin 24-48 V AC/DC
H3CR-A8E 24-48AC/DC
Omron
TIME RELAY Multi-function 12VDC (H3DKM2ADC12V)
Omron
Reflector 42X22MM, with Bracket
E39-R3
Omron

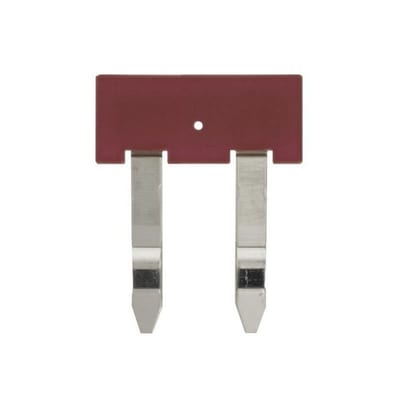

Jumper bar, 2 poles, red
