Omron
PLUG M12 4-Pin HUN 3-8mm CABLE
Part numberXS5C0030AEAN / GTIN4548583407824HS code8544.42
Electrical Components
Industrial Plugs & Sockets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

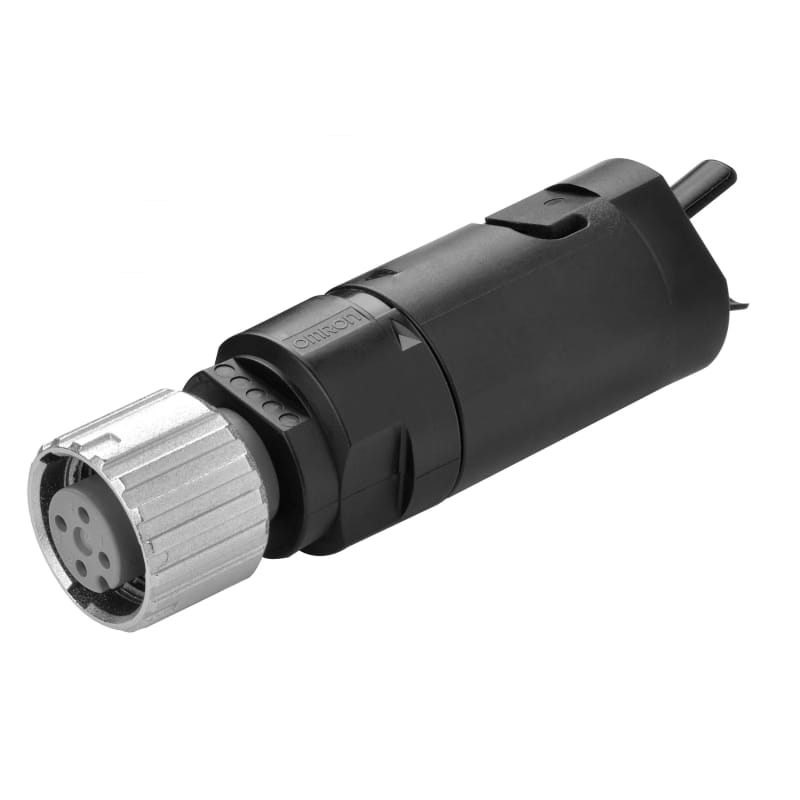

Omron XS5C0030A Plug M12, 4-pin straight female, PVC, IDC connection, for 3-8mm cable.
Technical Specifications
- Manufacturer part number (MPN)
- XS5C0030A
- EAN / GTIN
- 4548583407824
- HS code
- 8544.42
- Sales unit
- pcs
- Thread size
- M12
- Contact type
- Bus
- Diameter connector
- 17.5 mm
- Thread size M
- 12
- Number of data contacts
- 4
- Number of power contacts
- 4
- Number of control contacts
- 4
- For cable outer diameter
- 3–8 mm
- Type of housing
- Straight
- Rated current In
- 4 A
- Ambient temperature
- -25–70 °C
- Rated voltage
- 250 V
- Overvoltage category
- I
- Pollution degree
- 2
- Connectable conductor cross section solid-core
- 0.14–0.75 mm²
- Connectable conductor cross section multi-wired
- 0.14–0.75 mm²
- Type of electric connection
- Insulation displacement connection
- Material of contact surface
- Gold
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- Bayonet
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67
- Min. number of insertion cycles
- 50
- Screened
- No
- With status indication
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4548583407824
- SAP 1000711564
- Code 8329714
Product Documentation
Document preview: PLUG M12 4-Pin HUN 3-8mm CABLE (XS5C0030A) — Specification sheet
