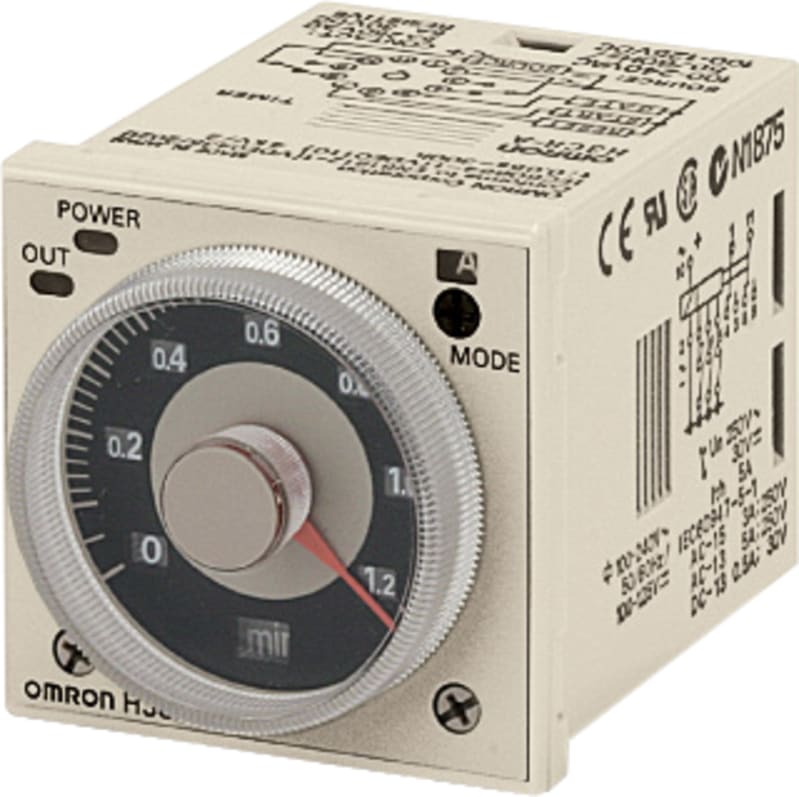

Omron H3CR-A8E Multifunction Time Relay 48x48 mm 8-Pin 24-48 V AC/DC

Plug-in multifunction time relay in a 48x48 mm DIN housing with an 8-pin base. Timing range spans 0.05 s to 300 h with a DPDT 5 A output; the same unit accepts 24-48 V AC or DC control supply. Combines delayed and instantaneous contacts, suited to sequencing, interlocking and cyclic control on machinery.

Manufacturer part number (MPN)

H3CR-A8E 24-48AC/DC

EAN / GTIN

4536854462085

HS code

8536.90

Sales unit

pcs

Package quantity

100 pcs

Type of electric connection

Plug-in connection

Function delay-on energization

No

Function delay on de-energization

No

Function floating contact on energization

No

Function floating contact on de-energization

No

Function star-delta

No

Function pulse shaping

No

Function flashing, starting with pause, fixed time

No

Function flashing, starting with pulse, fixed time

No

Clock function, starting with pause, variable

No

Clock function, starting with pulse, variable

Yes

With plug-in socket

No

Remote operation possible

No

Suitable as remote control

No

Pluggable on auxiliary contact block

No

Rated control supply voltage AC 50 Hz

24–48 V

Rated control supply voltage AC 60 Hz

24–48 V

Rated control supply voltage DC

24–48 V

Voltage type for actuating

AC/DC

Time range

0.05–1080000 s

Number of outputs, delayed, change-over contact

2

Outputs, reversible delayed/undelayed

Yes

With semiconductor output

No

Width

48 mm

Height

48 mm

Depth

68 mm

Country of origin

Indonesia

HS Code

8536.90
