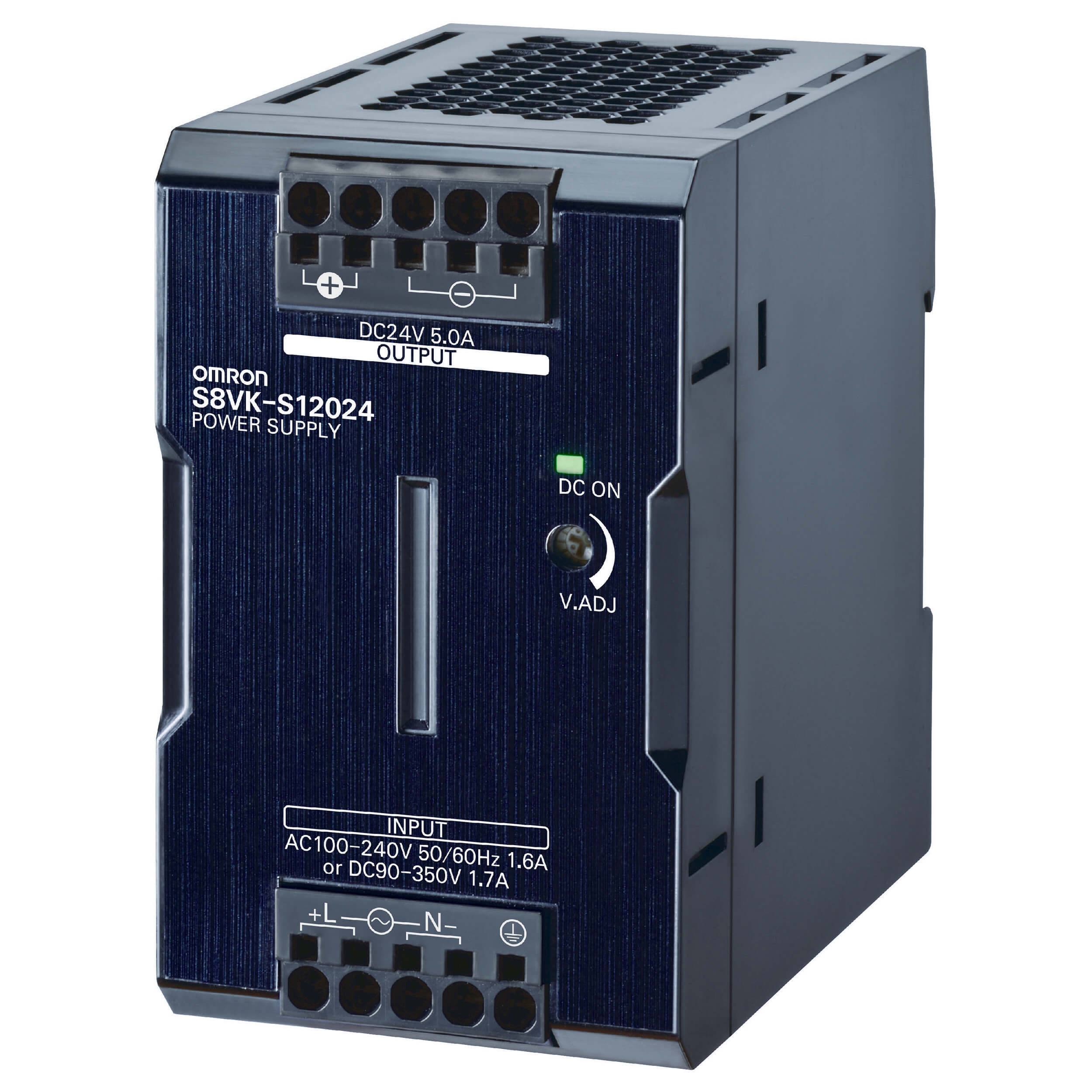

Omron S8VK-S switch-mode power supply, 120 W, 24 V DC, 5 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron S8VK-S switch-mode power supply, 120 W, 24 V DC, 5 A (S8VK-S12024). Omron S8VK-S12024, switch-mode power supply, control components / power supplies. Product type Switch-mode power supply. Series Omron S8VK-S. Product family Control Components / Power Supplies. Type DIN-rail. Mounting method DIN rail. Phase Single.
Technical Specifications
- Manufacturer part number (MPN)
- S8VK-S12024
- EAN / GTIN
- 4548583761124
- Sales unit
- pcs
- Product type
- Switch-mode power supply
- Series
- Omron S8VK-S
- Product family
- Control Components / Power Supplies
- Type
- DIN-rail
- Mounting method
- DIN rail
- Phase
- Single
- Output voltage
- 24 V
- Power output
- 120 W
- Rated output current
- 5 A
- Efficiency
- 92 %
- Power boost ratio
- 120 %
- Temperature range
- -40-70 °C
- Features
- Coated
- Terminal type
- Push-in
- Communication port(s)
- None
- Number of output branches
- 1
- Rated supply voltage at AC 50 Hz
- 100-240 V
- Allowable supply voltage AC
- 85-264 V
- Allowable supply voltage DC
- 90-350 V
- Product Width (unpacked)
- 55 mm
- Product Height (unpacked)
- 90 mm
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 21.6–28 V
- Max. output current 1
- 6 A
- Max. output current 2
- -8888 A
- Max. output current 3
- -8888 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output voltage 2
- -8888 V
- Nominal value output voltage 3
- -8888 V
- Nominal value output current 1
- 5 A
- Nominal value output current 2
- -8888 A
- Nominal value output current 3
- -8888 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Rated supply voltage DC
- 90–350 V
- Output voltage stabilized
- No
- Power consumption
- 144.9 VA
- Stabilized
- Yes
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 3.1
- Built-in width
- 55 mm
- Built-in height
- 90 mm
- Direct mounting possible
- No
- Width
- 55 mm
- Height
- 90 mm
- Depth
- 90 mm
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4548583761124
- SAP 1200001043
- Code 8430171
Product Documentation
