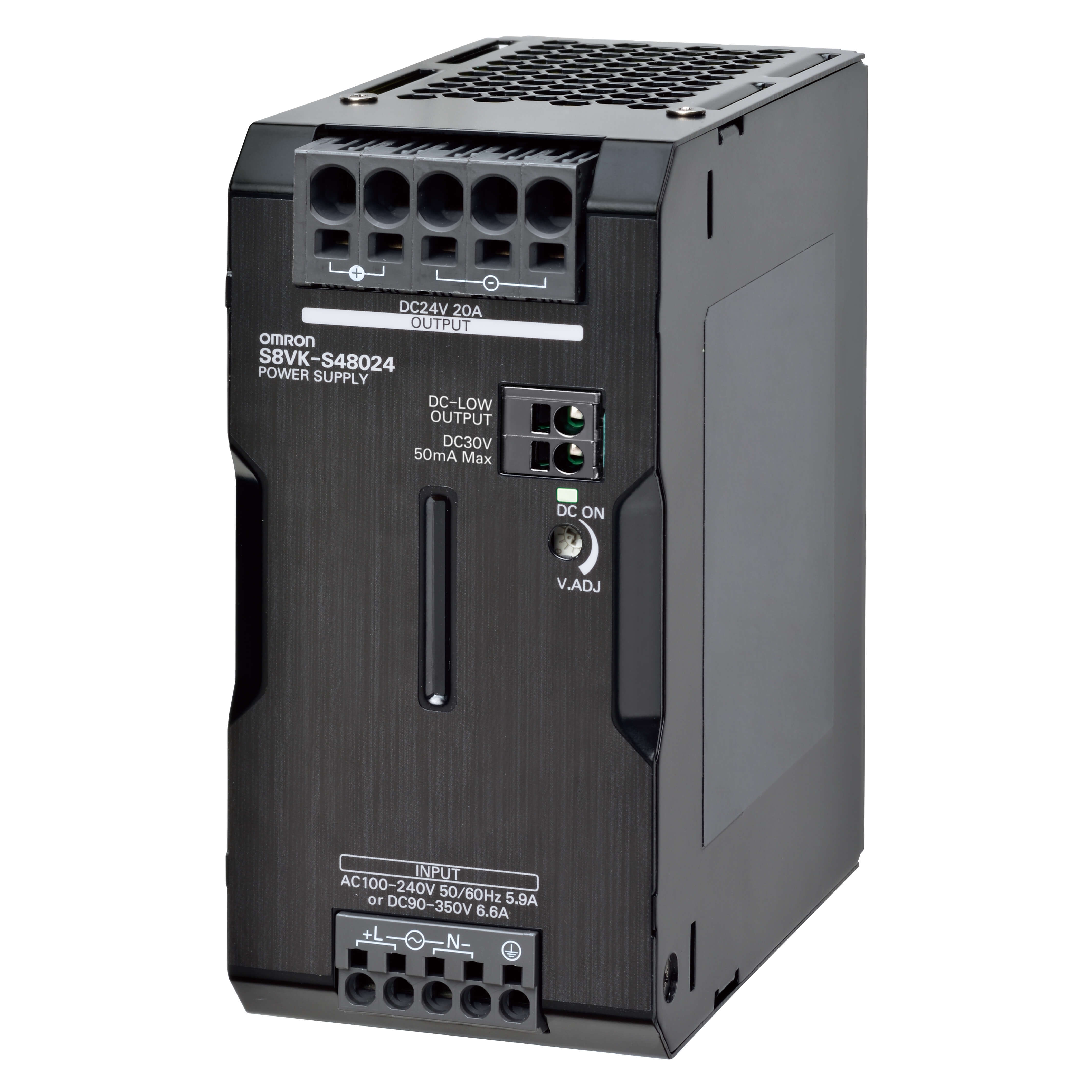

Omron S8VK-S switch-mode power supply, 480 W, 24 V DC, 20 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron S8VK-S switch-mode power supply, 480 W, 24 V DC, 20 A (S8VK-S48024). Omron S8VK-S48024, switch-mode power supply, control components / power supplies. Product type Switch-mode power supply. Series Omron S8VK-S. Product family Control Components / Power Supplies. Type DIN-rail. Mounting method DIN rail. Phase Single.
Technical Specifications
- Manufacturer part number (MPN)
- S8VK-S48024
- EAN / GTIN
- 4548583761148
- Sales unit
- pcs
- Voltage
- 24 V DC
- Product type
- Switch-mode power supply
- Series
- Omron S8VK-S
- Product family
- Control Components / Power Supplies
- Type
- DIN-rail
- Mounting method
- DIN rail
- Phase
- Single
- Output voltage
- 24 V
- Power output
- 480 W
- Rated output current
- 20 A
- Efficiency
- 93 %
- Power boost ratio
- 150 %
- Temperature range
- -40-70 °C
- Features
- Coated
- Terminal type
- Push-in
- Communication port(s)
- None
- Alarm function
- Relay
- Number of output branches
- 1
- Rated supply voltage at AC 50 Hz
- 100-240 V
- Allowable supply voltage AC
- 85-264 V
- Allowable supply voltage DC
- 90-350 V
- Product Width (unpacked)
- 60 mm
- Product Height (unpacked)
- 124 mm
- Product Depth (unpacked)
- 122 mm
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 21.6–28 V
- Max. output current 1
- 30 A
- Max. output current 2
- -8888 A
- Max. output current 3
- -8888 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output voltage 2
- -8888 V
- Nominal value output voltage 3
- -8888 V
- Nominal value output current 1
- 20 A
- Nominal value output current 2
- -8888 A
- Nominal value output current 3
- -8888 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Rated supply voltage DC
- 90–350 V
- Output voltage stabilized
- No
- Power consumption
- 529 VA
- Stabilized
- Yes
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 3.4
- Built-in width
- 60 mm
- Built-in height
- 124 mm
- Direct mounting possible
- No
- Width
- 60 mm
- Height
- 124 mm
- Depth
- 122 mm
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 1702.50
Cross References
- EAN 4548583761148
- SAP 1200117629
- Code 81970885
Product Documentation
More from Omron
Omron
Omron P2CF relay socket (P2CF-11-E)
Omron
Omron PYF relay socket, screw terminals (PYF08A-N)
Omron
S8VK-G CURRENTF. 30W,24VDC,1.3A
S8VK-G03024
Omron
TIME Relay Multi 24-240AC/DC (H3DK-M2 24-240VAC/Dc)
H3DK-M2 24-240VAC/DC
Omron
electronic protection,24V,8UTG.10A (S8V-CP0824)
Omron
Omron D4N-8C20 Safety Limit Switch Roller Lever 1NC+1NO 10 A
Omron
electronic protection,24V,4UTG.10A (S8V-CP0424)
Omron
P2RF-05-PU (4122719)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy S8VK-S48024?
- S8VK-S48024 can be ordered from cballast.com as a Omron catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Omron product?
- The manufacturer part number is S8VK-S48024.
- What is the HS code for S8VK-S48024?
- The customs tariff (HS) code for S8VK-S48024 is 1702.50.
- Who manufactures S8VK-S48024?
- S8VK-S48024 is a Omron product in the Control & Automation range.
- Is a datasheet available for S8VK-S48024?
- Yes — the S8VK-S48024 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for S8VK-S48024?
- The minimum order quantity is 1.
- Is S8VK-S48024 available?
- Yes — S8VK-S48024 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
