Omron
FR.OMF 7.5kW 3X400
Part numberMX2A4075EEAN / GTIN4547648636971HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron MX2A4075E MX2 variable-frequency drive, 7.5/11.0kW(HD/ND), 18/23A(HD/ND), 400VAC, 3-phase supply.
Technical Specifications
- Manufacturer part number (MPN)
- MX2A4075E
- EAN / GTIN
- 4547648636971
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 7.5 kW
- Width
- 140 mm
- Height
- 260 mm
- Depth
- 155 mm
- With control element
- Yes
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 580 Hz
- Max. output at linear load at rated output voltage
- 7.5 kW
- Max. output at quadratic load at rated output voltage
- 11 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 480 V
- Nominal output current I2N
- 23 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4547648636971
- SAP 1000165191
- Code 8883948
Product Documentation
Document preview: FR.OMF 7.5kW 3X400 — Specification sheet
More from Omron
Omron
Omron CJ Analogue I/O and Control Units (CJ1W-AD041-V1)
Omron
Cable M8 STRAIGHT 4-Pin PVC 5M
XS3FM8PVC4S5MEU1
Omron
Omron NX I/O Series I/O unit (NX-ID4442)
Omron
3 Pole 10A LED T.Button MEK.IND (MKS3PIN-5 110VAC)
Omron
Battery FOR CP1 PLS (CP1W-BAT01)
Omron
Contactor 18A/3POL/1NO/24VDC (J7KN181024VDC)
Omron

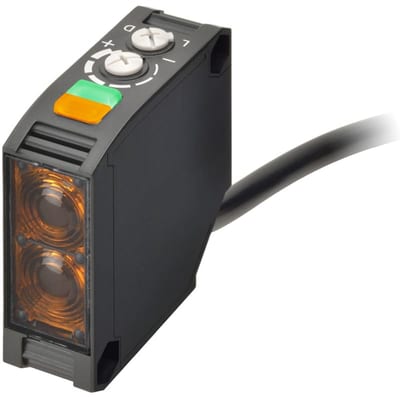

E3JK for Celle DIR. 2,5M AC/DC
E3JK-DR11 2M
Omron

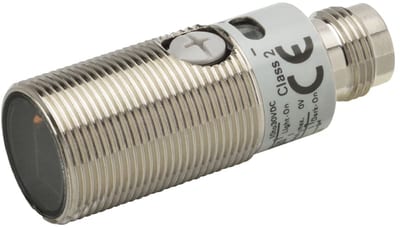

M18,METAL,DIR10CM,PNP,M12 PLUG (E3FB-DP21 Oms)
