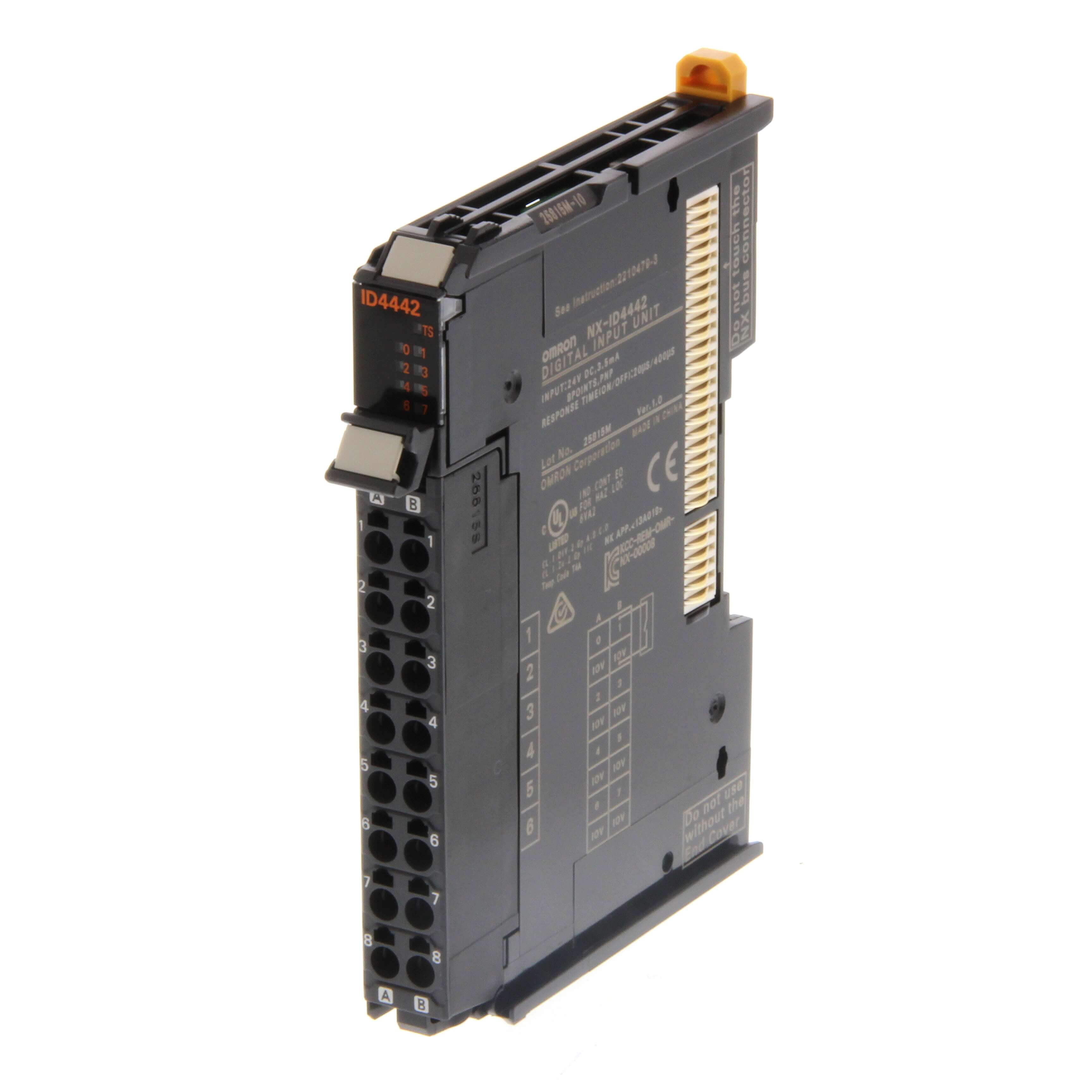

Omron NX I/O Series I/O unit (NX-ID4442)
Part numberNX-ID4442EAN / GTIN4549734450492HS code8517.62
Control & Automation
I/O Modules
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron NX I/O Series I/O unit (NX-ID4442). Omron NX-ID4442, I/O unit, automation systems / input and output (i/o). Product type I/O unit. Series Omron NX I/O Series. Product family Automation Systems / Input and Output (I/O). I/O system NX I/O Bus. Type of module Digital I/O. Number of digital inputs 8.
Technical Specifications
- Manufacturer part number (MPN)
- NX-ID4442
- EAN / GTIN
- 4549734450492
- Sales unit
- pcs
- Product type
- I/O unit
- Series
- Omron NX I/O Series
- Product family
- Automation Systems / Input and Output (I/O)
- I/O system
- NX I/O Bus
- Type of module
- Digital I/O
- Number of digital inputs
- 8
- Digital input type
- PNP
- Permitted voltage at input
- 15-28.8 V
- OFF/ON delay
- 0.02-0.4 ms
- Number of digital outputs
- 0
- Permitted voltage at output
- 0-0 V
- Output current
- 0 A
- Short-circuit protected outputs
- FALSE
- Connection method
- 2-wire
- Signal processing
- Free running, Standard speed, Synchronous
- I/O connection type
- Push-in
- Number of I/O connectors
- 1
- Detachable I/O terminal block
- TRUE
- Communication port(s)
- None
- Degree of protection (IP)
- IP20
- Product Height (unpacked)
- 104.5 mm
- Product Width (unpacked)
- 12 mm
- Product Depth (unpacked)
- 80.1 mm
- Product Weight (unpacked)
- 65 g
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- Yes
- Supply voltage DC
- 20.4–28.8 V
- Voltage type (supply voltage)
- DC
- Digital inputs configurable
- Yes
- Digital outputs configurable
- Yes
- Input current at signal 1
- 3.5 mA
- Type of voltage (input voltage)
- DC
- Type of digital output
- None
- Type of output voltage
- DC
- Short-circuit protection, outputs available
- No
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- No
- Type of electric connection
- Spring clamp connection
- Time delay at signal change
- 0.02–0.4 ms
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level a
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 12 mm
- Height
- 100 mm
- Depth
- 71 mm
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4549734450492
- SAP 1200311113
- Code 82291538
Product Documentation
Document preview: Omron NX I/O Series I/O unit (NX-ID4442) — Specification sheet
