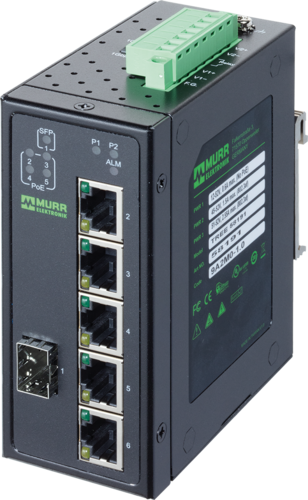

6 Port unmanaged Gigabit Switch 4 PoE 1 SFP Ports IP20 metal 48V
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 58191 — 6 Port unmanaged Gigabit Switch 4 PoE 1 SFP Ports IP20 metal 48V. 4PoE 1SFP GE 48V 6 Port Unmanaged IP20 PoE Gigabit Switch 48 V power supply SFP contact holder
Technical Specifications
- Manufacturer part number (MPN)
- 58191
- Model designation
- TREE 6TX
- EAN / GTIN
- 4048879843683
- HS code
- 8517.62
- EU customs tariff number
- 85176200
- US customs tariff number
- 8517620090
- Weight
- 0.350 kg
- Country of origin
- TW
- Sales unit
- pcs
- Electrical data | Supply - Power consumption max.
- 7.2 W
- Electrical data | Supply - PoE voltage amplifier
- Yes
- Industrial Communication - Data transmission rate max.
- 1.000 Mbit/s
- Ethernet functionality - VLAN unmanaged (IEEE 802.1Q)
- Yes
- Ethernet functionality - Switch type
- unmanaged
- Industrial communication | Ethernet functionality - duplex
- Full duplex
- Ethernet functionality - Auto-negotiation
- Yes
- Ethernet functionality - Auto-crossover
- Yes
- Diagnostics - Alarm contact
- Yes
- Diagnostics - Diagnostic
- No voltage
- Diagnostics - LED display
- Ethernet connection/data traffic
- Electrical - Degree of protection (EN IEC 60529)
- IP20
- Mechanical data | Material data - housing
- Metal
- Mechanical data | Material data - Color housing
- black
- Mechanical data | Mounting data - Height
- 110 mm
- Mechanical data | Mounting data - Width
- 45.4 mm
- Mechanical data | Mounting data - Depth
- 89.6 mm
- Mechanical data | Mounting data - Mounting method
- geschnappt
- Mounting data - Suitable for mounting type
- Mounting rail TH35, (EN 60715)
- Climatic - Operating temperature min.
- -40 °C
- Climatic - Operating temperature max.
- 70 °C
- Climatic - Ambient temperature (storage, transport)
- -40 °C … 85 °C
- Connection types - Connection type 1
- 1
- Connection types - Connection type 2
- 6
- Connection types - Connection type 3
- X1
- Connection type 1 - Family construction form
- POF SC-RJ
- Connection type 1 - No. of poles
- 2
- Connection type 1 - Gender
- female
- Connection type 1 - Color contact carrier
- black
- Connection type 1 - PIN 1
- RD
- Connection type 1 - PIN 2
- TD
- Connection type 2 - Family construction form
- RJ45
- Connection type 2 - No. of poles
- 8
- Connection type 2 - Gender
- female
- Connection type 2 - Color contact carrier
- black
- Connection type 2 - PIN 1
- TD +
- Connection type 2 - PIN 2
- TD -
- Connection type 2 - PIN 3
- RD +
- Connection type 2 - PIN 4
- n.c.
- Connection type 2 - PIN 5
- n.c.
- Connection type 2 - PIN 6
- RD -
- Connection type 2 - PIN 7
- n.c.
- Connection type 2 - PIN 8
- n.c.
- Connection type 3 - Family construction form
- terminal
- Connection type 3 - No. of poles
- 7
- Connection type 3 - Gender
- male
- Connection type 3 - Color contact carrier
- green
- Connection type 3 - Connection
- Plug-in terminals RK
- Connection type 3 - PIN 1
- V 2 +
- Connection type 3 - PIN 2
- V 2 -
- Connection type 3 - PIN 3
- Relay (NO)
- Connection type 3 - PIN 4
- Relay (NO)
- Connection type 3 - PIN 5
- V 1 +
- Connection type 3 - PIN 6
- V 1 -
- Connection type 3 - PIN 7
- FE
- ETIM-9.0
- EC000734
- ETIM-10.0
- EC000734
- Packaging unit
- 1
- ECLASS 14.0
- 19170402
