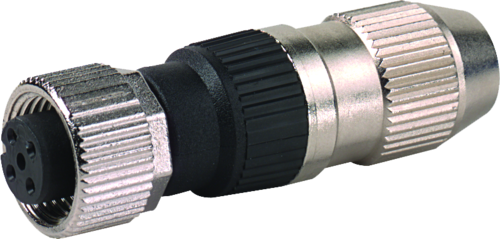

M12 female 0° A-cod. IDC 3-POL., 0.25 - 0.5mm², 4 - 5,1mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 7000-12581-0000000 — M12 female 0° A-cod. IDC 3-pol., 0.25 - 0.5mm², 4 - 5,1mm. Female straight M12, 3-pole IDC terminals Connection cross section: 0.25.0.5 mm² Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Technical Specifications
- Manufacturer part number (MPN)
- 7000-12581-0000000
- Model designation
- MSBL0-AC-R-IDC
- EAN / GTIN
- 4048879201766
- HS code
- 8536.69
- EU customs tariff number
- 85366990
- US customs tariff number
- 8536694020
- Weight
- 0.024 kg
- Country of origin
- DE
- Sales unit
- pcs
- Side 1 - Family construction form
- M12
- Side 1 - Degree of protection (EN IEC 60529)
- IP67
- Electrical data | Supply - Operating voltage AC max.
- 32 V
- Electrical data | Supply - Operating voltage DC max.
- 32 V
- Supply - Current operating per contact max.
- 4 A
- Installation - Single wire diameter min.
- 0.1 mm
- Installation - Connection cross section min.
- 0.25 mm²
- Installation - Connection cross section max.
- 0.5 mm²
- Installation | Connection - Tightening torque
- 0.6 Nm
- Installation | Connection - Wire insulation diameter min.
- 1.2 mm
- Installation | Connection - Wire insulation diameter max.
- 1.6 mm
- Electrical - Additional condition protection degree
- inserted, screwed
- Device protection | Electrical - Rated surge voltage
- 0.8 kV
- Electrical - Material group (IEC 60664-1)
- III
- Mechanical data | Mounting data - Height
- 51 mm
- Mechanical data | Mounting data - Width
- 15 mm
- Mechanical data | Mounting data - Depth
- 15 mm
- Mechanical data | Mounting data - Mounting method
- inserted, screwed, Shaking protection
- Mechanical data | Mounting data - Clamping range min.
- 4 mm
- Mechanical data | Mounting data - Clamping range max.
- 5.1 mm
- Climatic - Operating temperature min.
- -25 °C
- Climatic - Operating temperature max.
- 85 °C
- Important installation notes - Note on bending radius
- Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
- Important installation notes - Note on strain relief
- Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
- ETIM-5.0
- EC002635
- ETIM-6.0
- EC002635
- ETIM-7.0
- EC002635
- ETIM-8.0
- EC002635
- ETIM-9.0
- EC002635
- ETIM-10.0
- EC002635
- Packaging unit
- 1
- ECLASS 14.0
- 27440106
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4048879201766
- SAP 1000434863
- Code 847471
Product Documentation
More from Murrelektronik
Murrelektronik
M12 male 0° / M12 female 0° A-cod. PUR 4X0.34 gy UL/CSA+drag ch. 0.6M
7000-40021-2340060
Murrelektronik

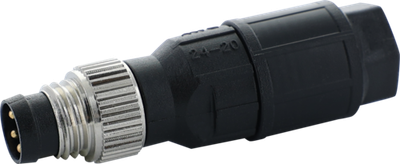

M8 male 0° A-cod. IDC 3-POL., 0,25 - 0,5mm², 2,5 - 5mm
