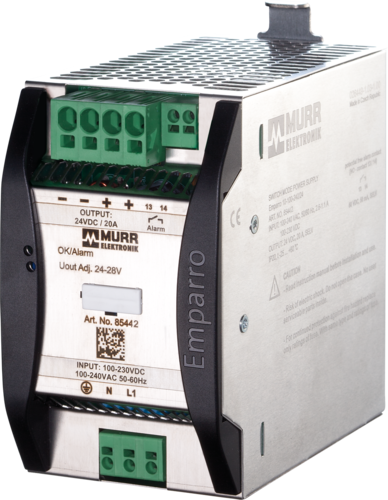

Emparro Power Supply 1-Phase, In: 100-240VAC Out: 24-28VDC/20A

Murrelektronik 85442 — EMPARRO POWER SUPPLY 1-PHASE, IN: 100-240VAC OUT: 24-28VDC/20A. INPUT: 90.265 V AC/90.250 V DC OUTPUT: 24.28 V DC Current: 20 A

Manufacturer part number (MPN)

85442

Model designation

Emparro 20-100-240/24

EAN / GTIN

4048879402910

HS code

8504.40

EU customs tariff number

85044095

US customs tariff number

8504409580

Weight

1.256 kg

Country of origin

CZ

Sales unit

pcs

Electrical data - Parallel connection

Yes

Number of devices parallel connection max.

5

Electrical data - Series connection

Yes

Electrical data - Number of devices series connection max.

2

Electrical data | Supply - Protective measure

SELV

Electrical data | Supply - Power frequency

50 ... 60 Hz

Electrical data | Input - Input voltage AC min.

90 V

Electrical data | Input - Input voltage AC max.

265 V

Electrical data | Input - Nominal input voltage AC

100 V … 240 V

Electrical data | Input - Input voltage DC min.

90 V

Electrical data | Input - Input voltage DC max.

250 V

Electrical data | Input - Nominal current AC

5.2 A @ 100 V,2.2 A @ 240 V

Electrical data | Input - Inrush current max.

23 A @ 230 V

Electrical data | Input - Power factor

230 V AC

Electrical data | Input - Efficiency

91.7 % @ 110 V AC 94.1 % @ 230 V AC

Electrical data | Input - Characteristic back-up fuse

Inertia

Input - Fuse protection primary side internal

10 A

Electrical data | Output - Output voltage adjustable

Yes

Electrical data | Output - Output voltage DC

24 V

Electrical data | Output - Output voltage DC min.

24 V

Electrical data | Output - Output voltage DC max.

28 V

Electrical data | Output - Output current

20 A

Electrical data | Output - Mains failure bridging min.

30 ms @ 100 V AC

Electrical data | Output - Power Boost

150 %

Electrical data | Output - Duration Power Boost min.

4 s

Electrical data | Output - Spikes (s-s) max.

200 mV

Electrical data | Output - Ripple effective max.

50 mV

Installation | Connection - Connection

Push-In spring clamp terminals

Electrical - Degree of protection (EN IEC 60529)

IP20

Electrical - Overload protection output

Yes

Electrical - Short-circuit protection output

Yes

Mechanical data | Mounting data - Height

123 mm

Mechanical data | Mounting data - Width

85 mm

Mechanical data | Mounting data - Depth

138 mm

Mechanical data | Mounting data - Mounting method

geschnappt

Mounting data - Suitable for mounting type

Mounting rail TH35, (EN 60715)

Electromagnetic compatibility - Interference emission

EN IEC 55011, IEC 61000-3-2

Climatic - Operating temperature min.

-40 °C

Climatic - Operating temperature max.

60 °C

Environmental characteristics | Climatic - Derating

45 °C

Climatic - Ambient temperature (storage, transport)

-40 °C … 80 °C

Climatic - Relative humidity (operation)

5 % … 95 %

Climatic - Additional condition relative humidity

no condensation

Conformity - Product standard

EN IEC 61010-2-201, EN 61204-3

Approvals - SEMI F47

compliant

Connection types - Connection type 1

Alarm

Connection types - Connection type 2

Input

Connection types - Connection type 3

Output

Connection type 1 - Family construction form

terminal

Connection type 1 - No. of poles

2

Connection type 1 - Gender

female

Connection type 1 - Color contact carrier

green

Connection type 1 - Connection

Spring clamp terminals FK

Connection type 1 - PIN 1

13

Connection type 1 - PIN 2

14

Connection type 2 - Family construction form

terminal

Connection type 2 - No. of poles

3

Connection type 2 - Gender

female

Connection type 2 - Color contact carrier

green

Connection type 2 - Connection

Spring clamp terminals FK

Connection type 2 - PIN 1

PE

Connection type 2 - PIN 2

N

Connection type 2 - PIN 3

L

Connection type 3 - Family construction form

terminal

Connection type 3 - No. of poles

4

Connection type 3 - Gender

female

Connection type 3 - Color contact carrier

green

Connection type 3 - Connection

Spring clamp terminals FK

Connection type 3 - PIN 3

+

Connection type 3 - PIN 4

+

ETIM-5.0

EC002540

ETIM-6.0

EC002540

ETIM-7.0

EC002540

ETIM-8.0

EC002540

ETIM-9.0

EC002540

ETIM-10.0

EC002540

Packaging unit

1

ECLASS 14.0

27040701

HS Code

8504.40

• EAN 4048879402910
• SAP 1000339323
• Code 8372031
