M12 male 0° / M12 female 90° A-cod. LED F&B PVC 4X0.34 gy UL/CSA 5M

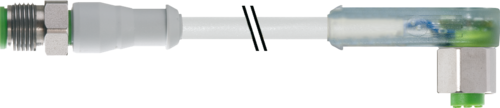

Murrelektronik 7014-40341-2140500 — M12 male 0° / M12 female 90° A-cod. LED F&B PVC 4x0.34 gy UL/CSA 5m. Food & Beverage Male straight – female 90° M12 – M12, 4-pole 3× LED (PNP), (NPN) on request Profile gasket

Manufacturer part number (MPN)

7014-40341-2140500

Model designation

MSDL2-A-T214_5.0-S14

EAN / GTIN

4048879308748

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

0.225 kg

Country of origin

DE

Sales unit

pcs

Cable length

5.00 m

Side 1 - Family construction form

M12

Side 1 - No. of poles

4

Side 1 - Coding

A

Side 1 - Gender

male

Side 1 - Mounting method

inserted, screwed

Side 1 - Threaded hole

M12 x 1

Side 1 - Tightening torque

0.6 Nm

Side 1 - Width across flats

SW14

Side 1 - Cable outlet

straight

Side 1 - suitable for corrugated tube (internal Ø)

10 mm

Side 1 - Material contact

Copper alloy

Side 1 - Coating contact

gold plated

Side 1 - Degree of protection (EN IEC 60529)

IP68, IP65

Side 2 - Family construction form

M12

Side 2 - No. of poles

4

Side 2 - Coding

A

Side 2 - Gender

female

Side 2 - Mounting method

inserted, screwed

Side 2 - Threaded hole

M12 x 1

Side 2 - Tightening torque

0.6 Nm

Side 2 - Width across flats

SW14

Side 2 - Cable outlet

angled

Side 2 - suitable for corrugated tube (internal Ø)

10 mm

Side 2 - Material contact

Copper alloy

Side 2 - Coating contact

gold plated

Side 2 - Degree of protection (EN IEC 60529)

IP68, IP65

Electrical data | Supply - Operating voltage DC

24 V

Electrical data | Supply - Operating voltage DC min.

18 V

Electrical data | Supply - Operating voltage DC max.

30 V

Supply - Current operating per contact max.

4 A

Electrical - Additional condition protection degree

inserted, screwed

Device protection | Electrical - Rated surge voltage

0.8 kV

Mechanical data | Material data - Locking material

Stainless steel 1.4404 (V4A)

Mechanical data | Mounting data - Mounting method

inserted, screwed, Shaking protection

Climatic - Operating temperature min.

-30 °C

Climatic - Operating temperature max.

85 °C

Climatic - Additional condition temperature range

depending on cable quality

Important installation notes - Note on bending radius

Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Important installation notes - Note on strain relief

Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

General data | Cable - Cable identification

214

General data | Cable - Cable Type

1

General data | Cable - Cable weigth

37 g/m

General data | Cable - UL AWM Style

2464 / 1731

Structure | Cable - Stranding

1 × 4 wires stranded

Structure | Cable - Wire arrangement

BN, BK, BU, WH

Wire data | Cable - Material wire insulation

PVC

Wire data | Cable - Amount wires

4

Wire data | Cable - Outer diameter insulation

1.25 mm ± 0.05 mm

Wire data | Cable - Conductor crosssection (wire)

0.34 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

19 × 0.15 mm

Wire data | Cable - Material properties wire insulation

good machinability

Wire data | Cable - Ingredient freeness wire insulation

lead-free, cadmium-free, CFC-free, silicone-free

Jacket data | Cable - Material jacket

PVC

Jacket data | Cable - Outer-diameter (jacket)

5 mm ± 5 %

Jacket data | Cable - Jacket Color

gray / RAL 7040

Jacket data | Cable - Freedom from ingredients (jacket)

lead-free, cadmium-free, CFC-free, silicone-free

Jacket data | Cable - Material property (jacket)

good machinability

Electrical data | Cable - Conductor resistance (wire)

57 Ω/km @ 20 °C

Electrical data | Cable - Nominal voltage max.

300 V

Electrical data | Cable - Withstand voltage (wire - wire)

2 kV @ 60 s

Cable - Withstand voltage (wire - jacket)

2 kV @ 60 s

Cable - Current load capacity max. (wire)

4.8 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-30 °C … 80 °C

Cable - Operating temperature (dynamic)

-5 °C … 80 °C

Resistances | Cable - Flame resistance

UL 1581 § 1080, CSA FT1, IEC 60332-1-2

Resistances | Cable - Oil resistance

good

Resistances | Cable - Chemical resistance

good

Resistances | Cable - Other resistances

good resistance to gasoline

Resistances | Cable - Notes

application-related testing

Installation | Cable - Bending radius (fixed)

5 × Outer diameter

Installation | Cable - Bending radius (dynamic)

10 × Outer diameter

ETIM-5.0

EC001855

ETIM-6.0

EC001855

ETIM-7.0

EC001855

ETIM-8.0

EC001855

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

ECLASS 14.0

27060311

HS Code

8544.42

• EAN 4048879308748
• SAP 1000651424
• Code 8208296
