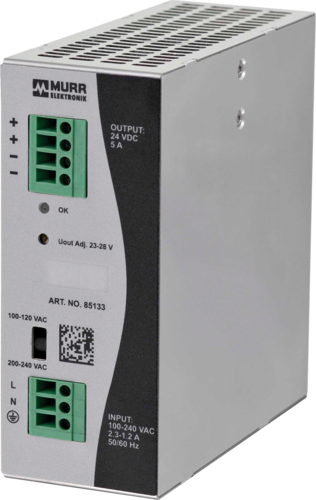

ECO-RAIL-2 Power Supply 1-Phase, In: 90 ... 132 VAC / 173 … 264 VAC Out: 24V/5ADC

Murrelektronik 85133 — ECO-RAIL-2 POWER SUPPLY 1-PHASE, IN: 90. 132 VAC / 173 … 264 VAC OUT: 24V/5ADC. 5-100-240/24 INPUT: 100.240 V AC OUTPUT: 23.28 V DC Current: 5 A Mains failure bridging min. min. 45 ms (115 V AC); min. 45 ms (230 V AC)

Manufacturer part number (MPN)

85133

Model designation

Eco-Rail-2

EAN / GTIN

4048879694476

HS code

8504.40

EU customs tariff number

85044083

US customs tariff number

8504409550

Weight

0.700 kg

Country of origin

CN

Sales unit

pcs

Electrical data - Parallel connection

No

Electrical data - Series connection

Yes

Electrical data - Number of devices series connection max.

2

Electrical data | Supply - Power frequency

50 ... 60 Hz

Electrical data | Input - Input voltage AC min.

100 V

Electrical data | Input - Input voltage AC max.

240 V

Electrical data | Input - Nominal input voltage AC

100 V … 240 V

Electrical data | Input - Nominal current AC

2.4 A @ 100 V,1.2 A @ 240 V

Electrical data | Input - Inrush current max.

20 A @ 230 V

Electrical data | Input - Efficiency

87 % @ 115 V AC 88 % @ 230 V AC

Electrical data | Input - Characteristic back-up fuse

Inertia

Input - Fuse protection primary side internal

5 A

Electrical data | Output - Output voltage adjustable

Yes

Electrical data | Output - Output voltage DC

24 V

Electrical data | Output - Output voltage DC min.

23 V

Electrical data | Output - Output voltage DC max.

28 V

Electrical data | Output - Output current

5 A

Electrical data | Output - Spikes (s-s) max.

50 mV

Electrical data | Output - Ripple effective max.

10 mV

Electrical - Degree of protection (EN IEC 60529)

IP20

Electrical - Overload protection output

Yes

Electrical - Short-circuit protection output

Yes

Mechanical data | Mounting data - Height

125 mm

Mechanical data | Mounting data - Width

50 mm

Mechanical data | Mounting data - Depth

123 mm

Mechanical data | Mounting data - Mounting method

geschnappt

Mounting data - Suitable for mounting type

Mounting rail TH35, (EN 60715)

Electromagnetic compatibility - Interference emission

IEC 61000-3-2

Climatic - Operating temperature min.

0 °C

Climatic - Operating temperature max.

40 °C

Environmental characteristics | Climatic - Derating

40 °C

Climatic - Ambient temperature (storage, transport)

-20 °C … 85 °C

Climatic - Relative humidity (operation)

20 % … 90 %

Climatic - Additional condition relative humidity

no condensation

Conformity - Product standard

EN IEC 61010-2-201

Connection type 1 - Family construction form

terminal

Connection type 1 - No. of poles

3

Connection type 1 - Gender

female

Connection type 1 - Color contact carrier

green

Connection type 1 - Connection

Spring clamp terminals FK

Connection type 1 - PIN 1

PE

Connection type 1 - PIN 2

N

Connection type 1 - PIN 3

L

Connection type 2 - Family construction form

terminal

Connection type 2 - No. of poles

4

Connection type 2 - Gender

female

Connection type 2 - Color contact carrier

green

Connection type 2 - Connection

Spring clamp terminals FK

Connection type 2 - PIN 3

+

Connection type 2 - PIN 4

+

ETIM-5.0

EC002540

ETIM-6.0

EC002540

ETIM-7.0

EC002540

ETIM-8.0

EC002540

ETIM-9.0

EC002540

ETIM-10.0

EC002540

Packaging unit

1

ECLASS 14.0

27040701

HS Code

8504.40
