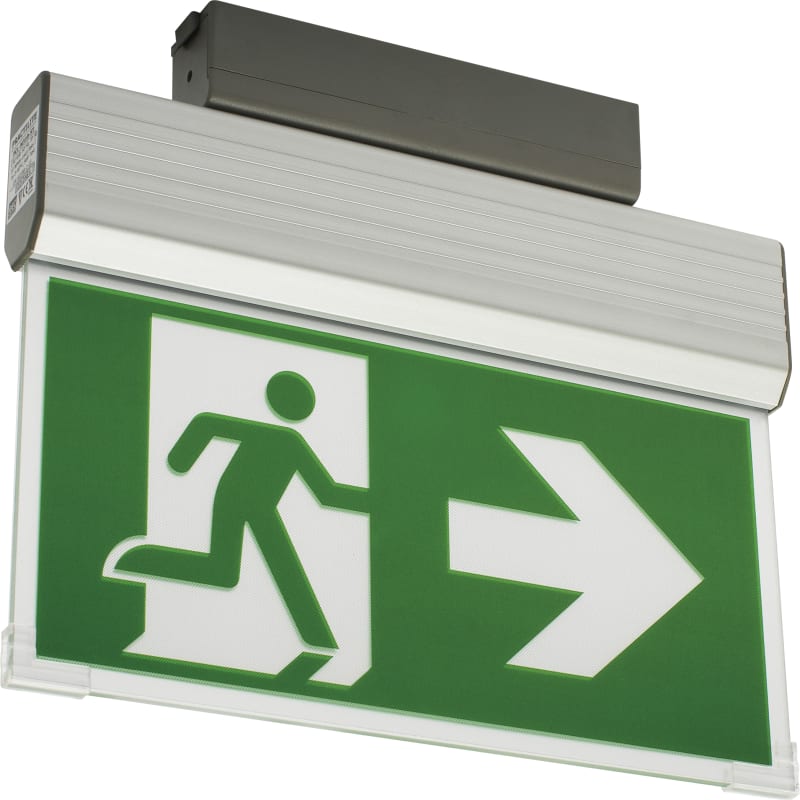

Practiled M Emergency Exit Sign with Self-Test
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 6685040 Practiled M emergency exit sign luminaire with self-test; viewing distance 24 m; all pictograms included.
Technical Specifications
- Manufacturer part number (MPN)
- 6685040
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Function
- Escape route signage
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single/double-sided
- With pictogram
- Yes
- Monitoring equipment
- Automatic self test
- With remote switch connection
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Aluminium
- Housing colour
- Aluminium
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- LED nominal current at constant current
- 0.05 mA
- Type of control gear
- Not required
- Light distributor
- None
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Degree of protection (IP)
- IP30
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 0–40 °C
- Recognition distance
- 24 m
- Nominal operation time
- 1 h
- Width
- 266 mm
- Height/depth
- 30 mm
- Length
- 195 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 9405.60
Cross References
- 7070701218588
Product Documentation
More from Melbye
Melbye

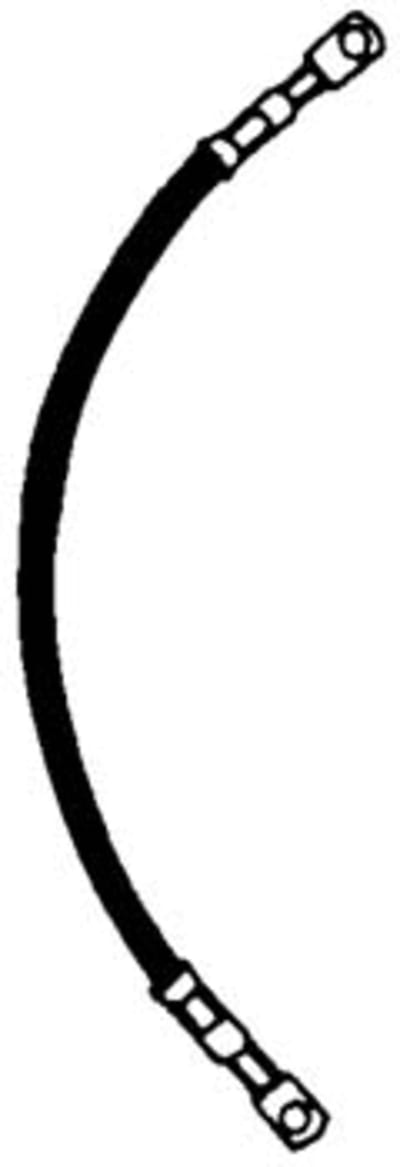

Melbye JL 50 2.0 M Grounding Braid Type JL 50 mm² Copper 2 m Cable Lug
Melbye
Melbye A2565G Insulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M6 (Blue)
Melbye

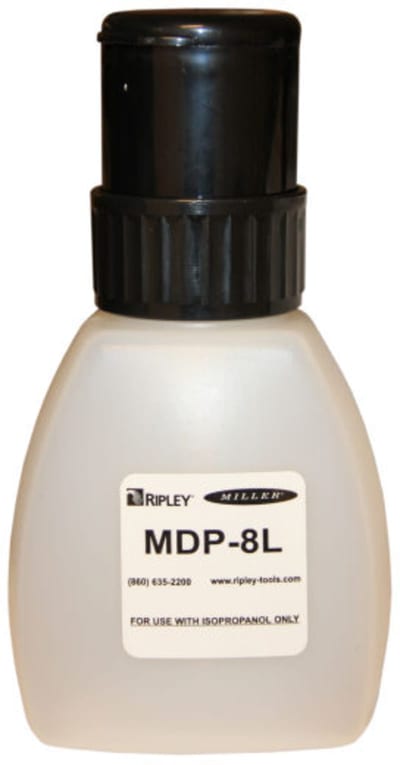

Dispenser FOR Rensesprit
6923373
Melbye

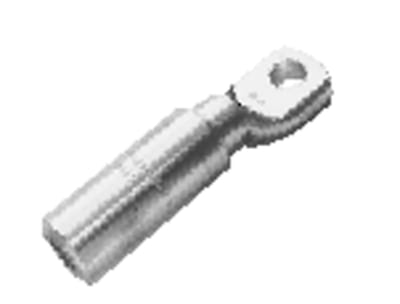

Melbye AK 95-12 Aluminium Compression Cable Lug 95 mm² M12
AK AL 95MM2/12
Melbye

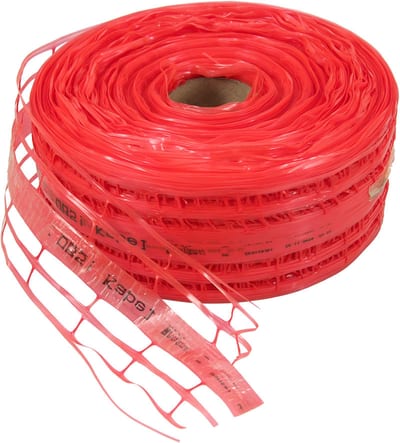

Melbye 20 cm Red Warning Net without Tracer Wire
RØD 20CM U/SØKETRÅD
Melbye
End fastener FLAT ADSS 10X4MM
2885580
Melbye

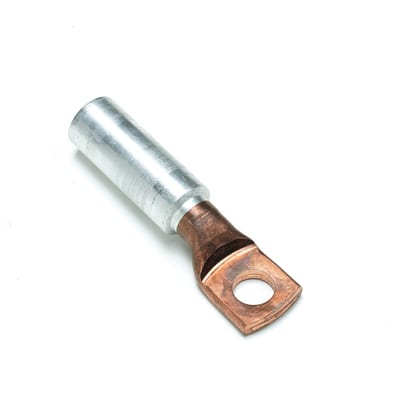

Melbye AKK 50-12 Aluminium-Copper Bimetallic Compression Cable Lug 50 mm² M12
AKK 50MM2/12
Melbye

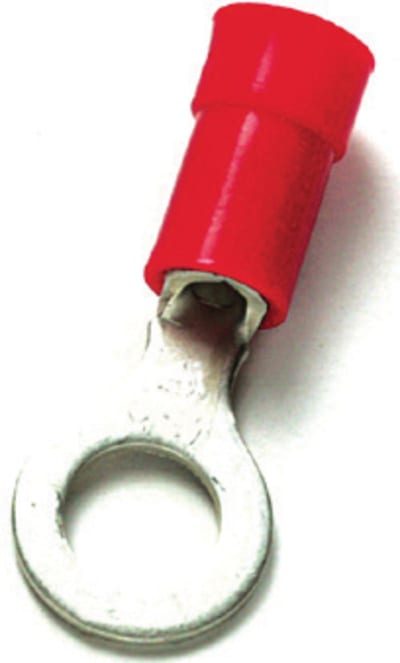

Melbye A1532R Insulated Ring Terminal, 1.5 mm² M3 (Red)
