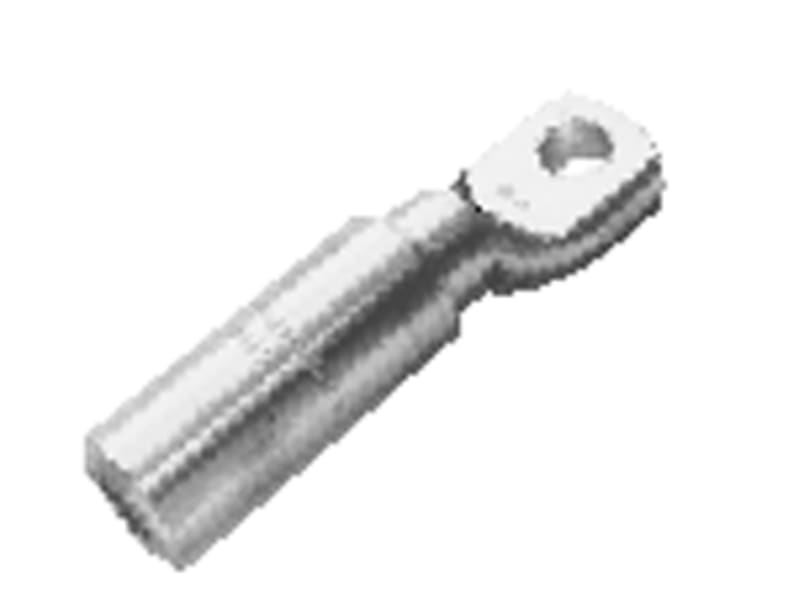

Melbye AK 95-12 Aluminium Compression Cable Lug 95 mm² M12
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye AK 95-12 — all-aluminium compression cable lug for terminating a 95 mm² aluminium conductor onto an M12 stud. Solid aluminium barrel and palm for connecting an aluminium conductor to an aluminium or plated apparatus terminal. Compression-crimped to solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors with the matching die.
Technical Specifications
- Type
- Aluminium compression cable lug
- Conductor cross-section
- 95 mm² (aluminium)
- Stud / bolt hole
- M12
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Solid aluminium barrel and palm
- Connection
- Aluminium conductor to aluminium / plated apparatus terminal
- Crimp
- Compression crimp(s) on the aluminium barrel
- Compression connector standard
- IEC 61238-1
- Manufacturer part number (MPN)
- AK AL 95MM2/12
- EAN / GTIN
- 7070701018324
- Sales unit
- pcs
- Package quantity
- 24 pcs
- HS code
- 8536.90
- Longitudinal sealed
- Yes
- Number of mounting holes
- 1
- Bolt dimension (metric)
- 12
- Suitable for Al/St-cables
- No
- Sleeve form
- Short
- According to DIN
- No
- Cross section form
- Round
- Nominal cross section aluminium, SE
- 95 mm²
- Nominal cross section aluminium, RM/SM
- 95 mm²
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701018324
- SAP 1000079422
- Code 8836588
Product Documentation
