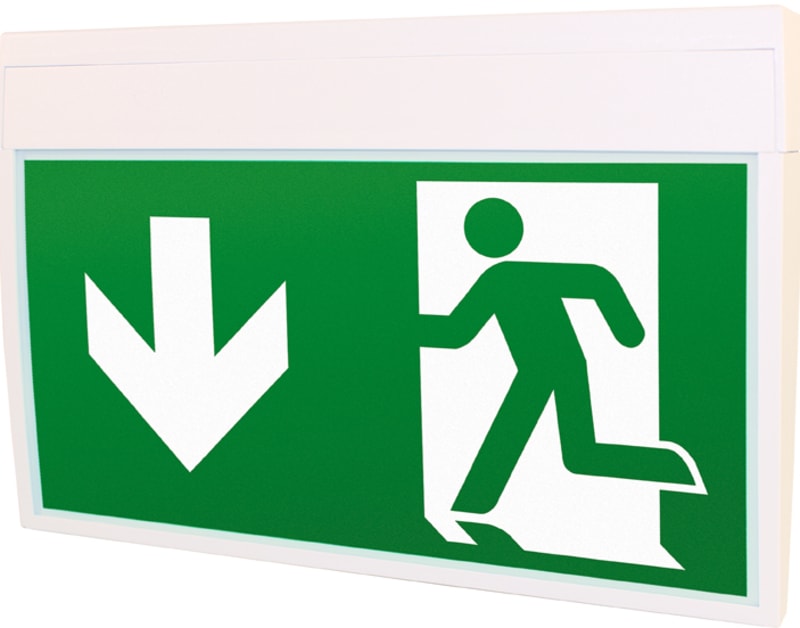

KMU003-LED/3H/Pictogram (6685023)
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 6685023 Emergency lighting. Exit sign luminaire with LED, standard. Can be used both single- and double-sided. 3 Piktogrammer follows with.Viewing distance 24m.
Technical Specifications
- Manufacturer part number (MPN)
- 6685023
- Sales unit
- pcs
- El-nummer (NO)
- 6685023
- ETIM class
- SC001957
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Function
- Escape route signage
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single/double-sided
- With pictogram
- Yes
- Monitoring equipment
- None
- With remote switch connection
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- LED nominal current at constant current
- 0.05 mA
- Type of control gear
- Not required
- Light distributor
- None
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Degree of protection (IP)
- IP43
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- -5–40 °C
- Recognition distance
- 24 m
- Nominal operation time
- 3 h
- Width
- 250 mm
- Height/depth
- 34 mm
- Length
- 174 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.60
Cross References
- 7070701218540
- El-nr 6685023
