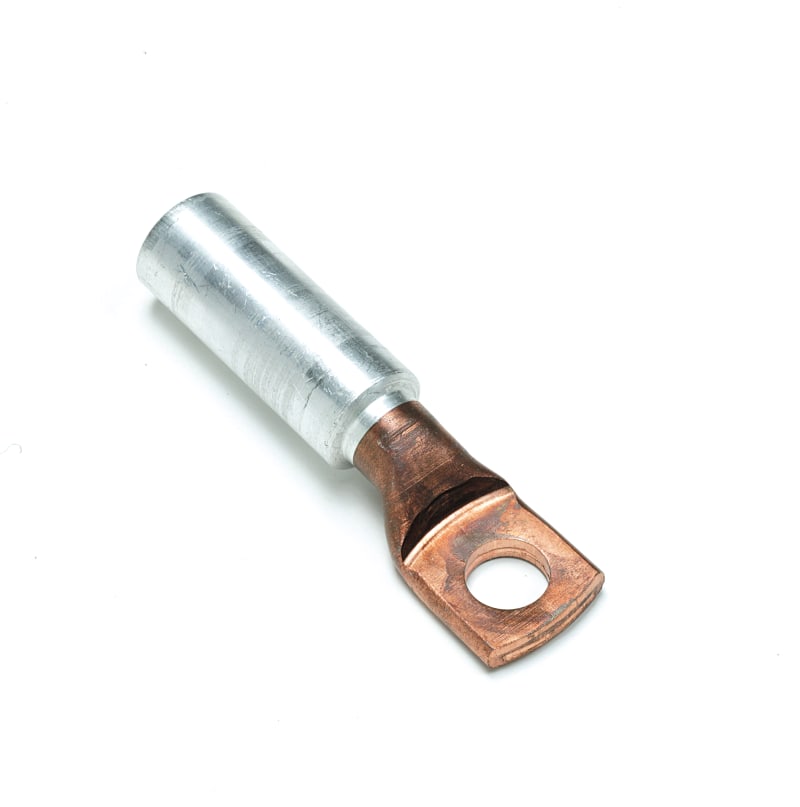

Melbye AKK 300-16 Aluminium-Copper Bimetallic Compression Cable Lug 300 mm² M16

Melbye AKK 300-16 — aluminium-copper (AlCu) bimetallic compression cable lug for terminating a 300 mm² aluminium conductor onto an M16 stud. The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor connects directly to a copper busbar or apparatus terminal without a separate bimetal washer. Two compression crimps are made on the aluminium barrel; accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors.

Type

Aluminium-copper (AlCu) bimetallic compression cable lug

Conductor cross-section

300 mm² (aluminium)

Stud / bolt hole

M16

Conductor class

Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium

Material

Friction-welded solid aluminium barrel + electrolytic copper palm

Connection

Aluminium conductor to copper busbar / apparatus terminal

Crimp

Two compression crimps on the aluminium barrel

Compression connector standard

IEC 61238-1

Manufacturer part number (MPN)

AKK 300MM2/16

EAN / GTIN

7070701018195

Sales unit

pcs

Package quantity

6 pcs

HS code

8536.90

Longitudinal sealed

Yes

Number of mounting holes

1

Bolt dimension (metric)

16

Suitable for Al/St-cables

No

Sleeve form

Short

According to DIN

No

Cross section form

Round

Nominal cross section aluminium, SE

300 mm²

Nominal cross section aluminium, RM/SM

300 mm²

Country of origin

Spain

HS Code

8536.90

• EAN 7070701018195
• SAP 1000030519
• Code 8239938
